Home >> Cadillac >> 2021 >> CT4 V, RWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Bolted Exterior Body Panels And Closures >> Repair Instructions >> Front Side Door Weatherstrip Replacement - Door Side >> Removal Procedure

Removal Procedure

  1. GM5539280Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

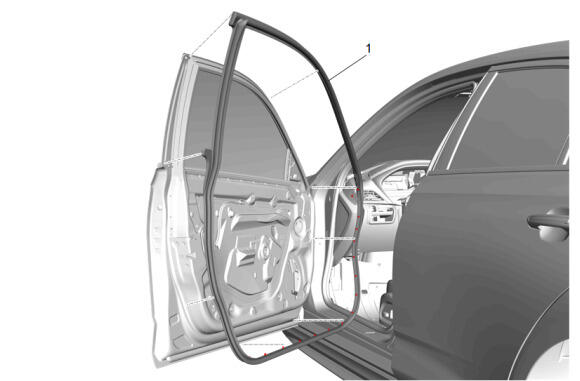

  2. GM5485947Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, remove the weatherstrip retainers from around the front side door.

  3. Front Side Door Weatherstrip - Door Side (1) - Remove
