Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

With a flat bladed plastic trim tool, start at the front and work your way back to release the clips.
Instrument Panel Outer Trim Cover (1) - Remove
{If equipped} Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

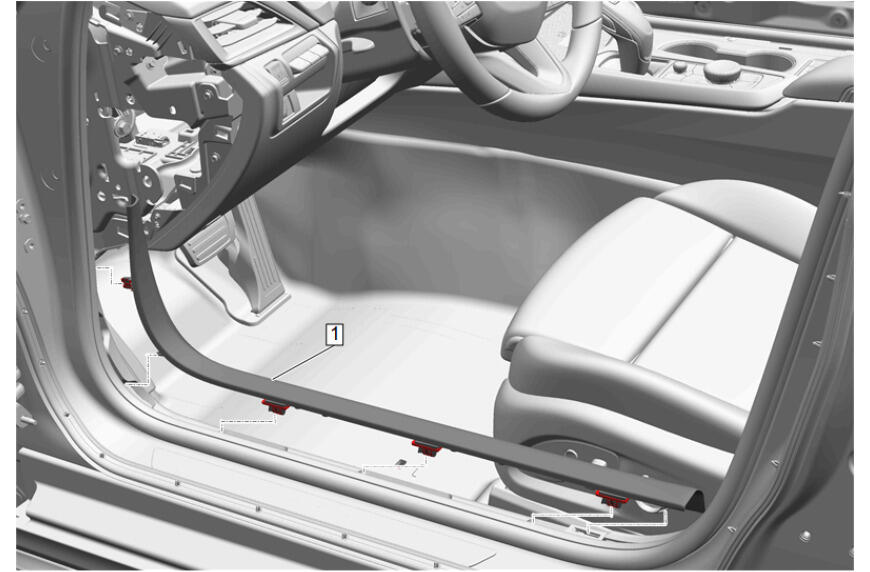

Starting at the rear of the front side door sill garnish molding (1) pull upward at the b-pillar joint to disengage the garnish molding.
Work your way forward disengaging all the front side door sill garnish molding clips then pull rearward to disengage the clip on the forward vertical wall.
Front Side Door Sill Garnish Molding (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

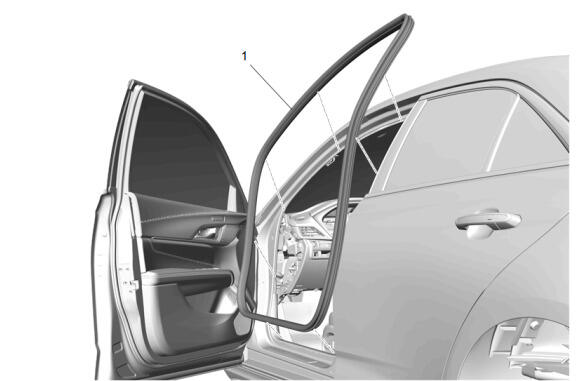

Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Front Side Door Weatherstrip - Body Side (1) - Remove
