Removal Procedure

  1. Apply a double layer of masking tape around the perimeter of the painted surfaces.
  2. GM5311753Courtesy of GENERAL MOTORS COMPANY

    Disconnect the front side door wiring harness (1) electrical connector.

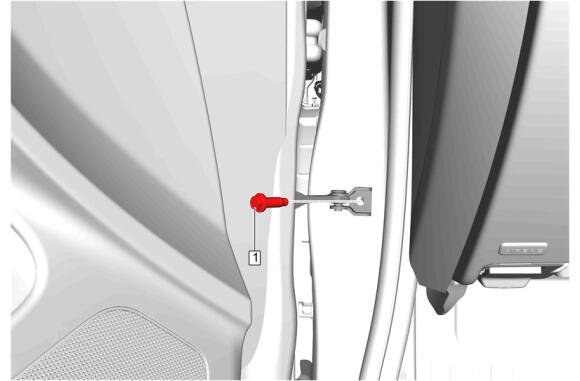

  3. GM5539280Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

  4. GM5311758Courtesy of GENERAL MOTORS COMPANY

    Mark the location of the front side door hinges with a grease pencil to aid in alignment during installation.

  5. Support the door before removing the hinge fastener.
  6. Front Side Door Hinge Bolt - Door Side (1) - Remove [4x]
  7. With the aid of an assistant, remove the front side door (2).
  8. Transfer components as necessary.
