Removal Procedure

  1. Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation

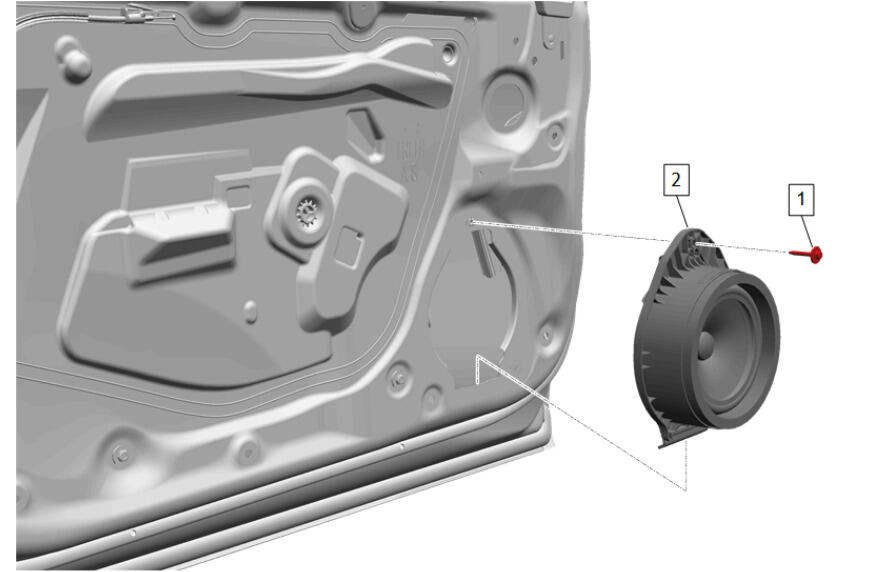

  2. GM5437466Courtesy of GENERAL MOTORS COMPANY

    Radio Front Side Door Speaker Bolt (1) - Remove

  3. Radio Front Side Door Speaker (2) - Remove
  4. Disconnect the electrical connector.

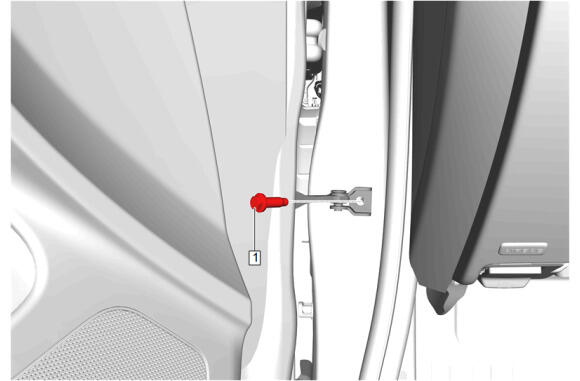

  5. GM5539714Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

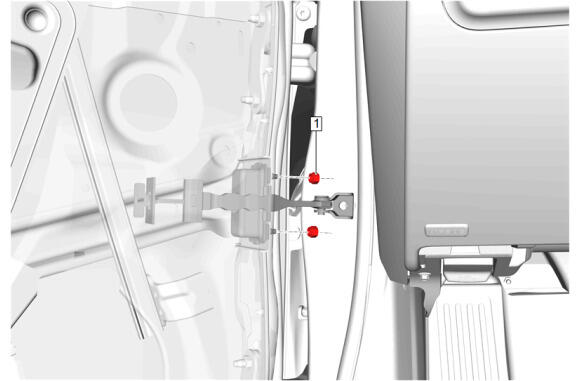

  6. GM5539740Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Nut (1) - Remove [2x]

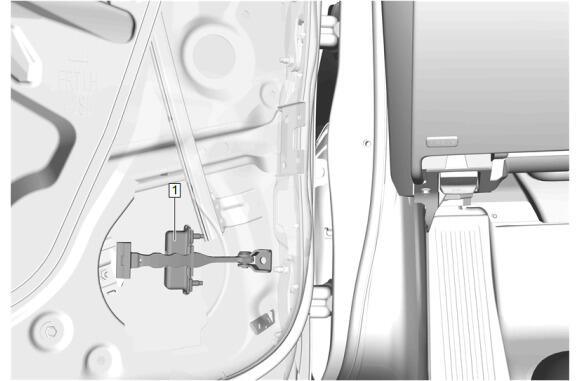

  7. GM5539735Courtesy of GENERAL MOTORS COMPANY

    Remove the front side door check link (1) through the radio front side door speaker hole.

  8. Transfer components as necessary.
