Installation Procedure

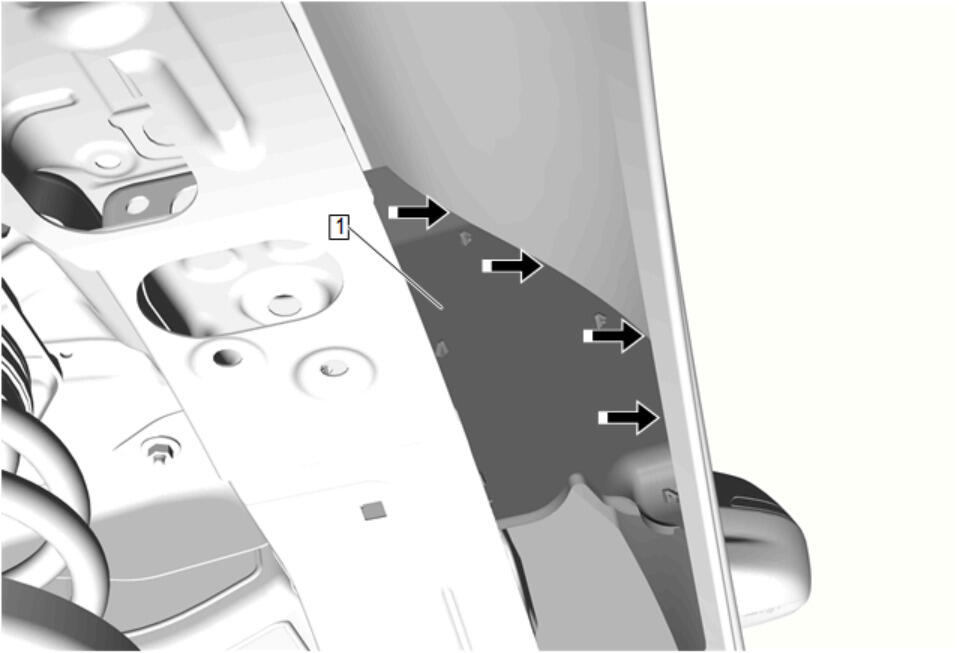

Apply Structural foam 3M™ NVH Dampening Material or equivalent to the front compartment side rail baffle (1).

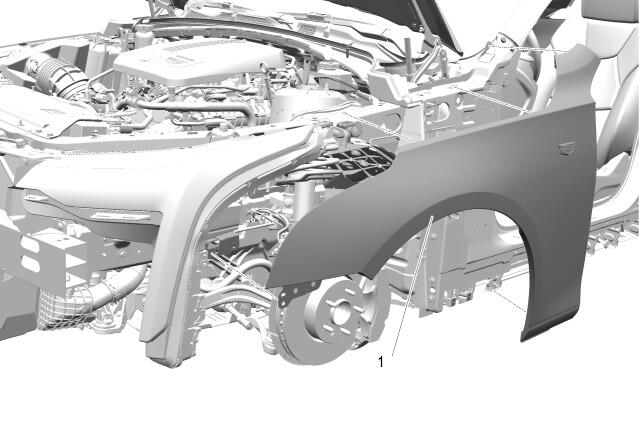

Front Fender - Left Side - Install
- CAUTION:
Refer to Fastener Caution .

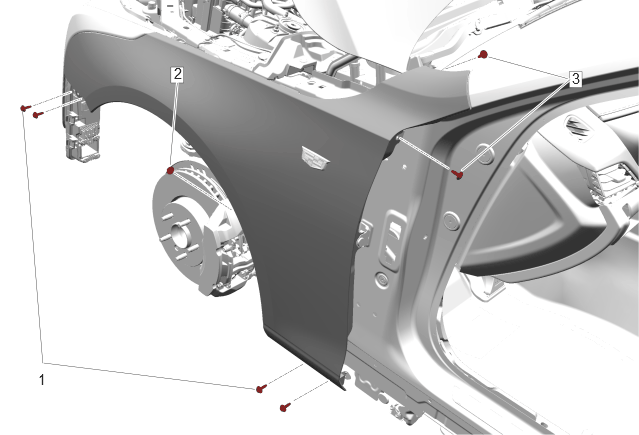

Front Fender Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Front Fender Nut (2) - Install and tighten - Fastener Specifications
- Front Fender Screw (3) - Install and tighten [2x] - Fastener Specifications

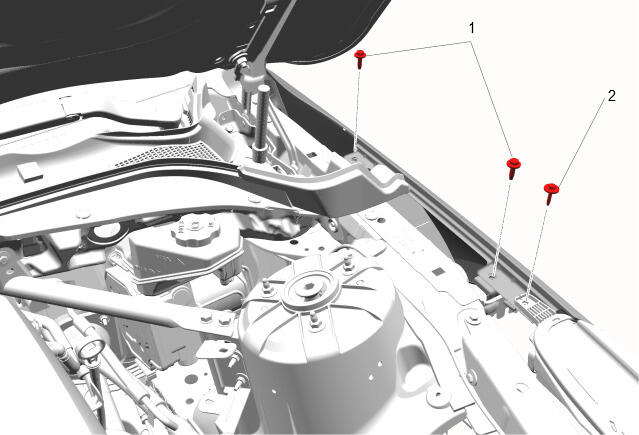

Front Fender Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Headlamp Bolt (2) - Install and tighten - Fastener Specifications

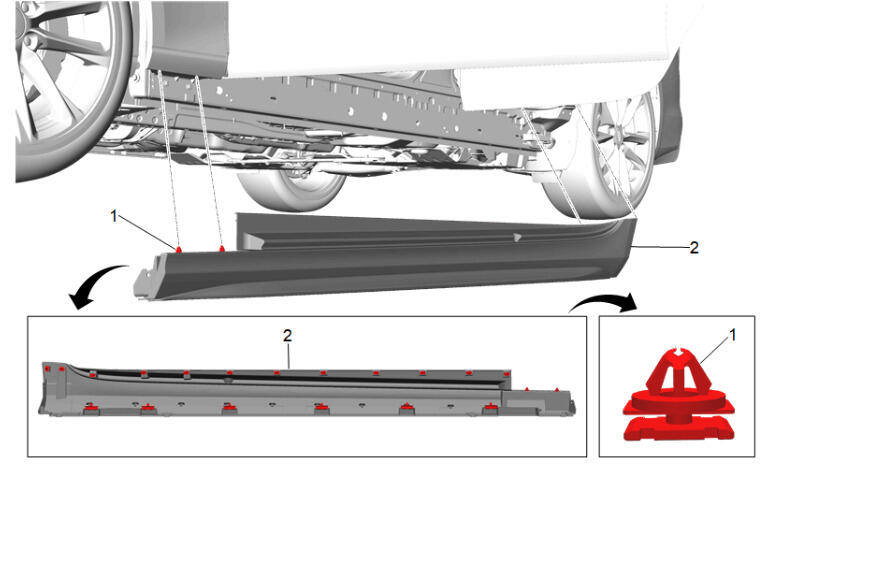

Position the rocker panel molding (2) to the vehicle and seat the upper rocker panel molding retainers (1) into the body side outer panel.
- Seat the lower rocker panel molding retainers (1) into the body side outer panel.

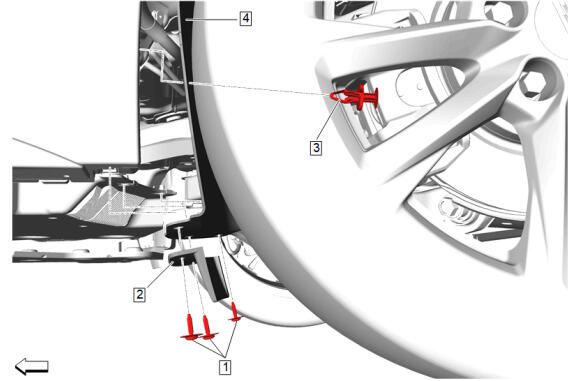

Position the rear wheelhouse liner (4) to its original location.
- Rear Wheelhouse Liner Retainer (3) - Install
- Rear Tire Front Air Deflector (2) - Install
- Rear Tire Front Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
Front Bumper Fascia Guide (3) - Install
- Front Bumper Fascia Guide Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Headlamp Bolt (1) - Install - Fastener Specifications
Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
Front Fender Insulator (2) - Install
- Front Fender Insulator Retainer (1) - Install

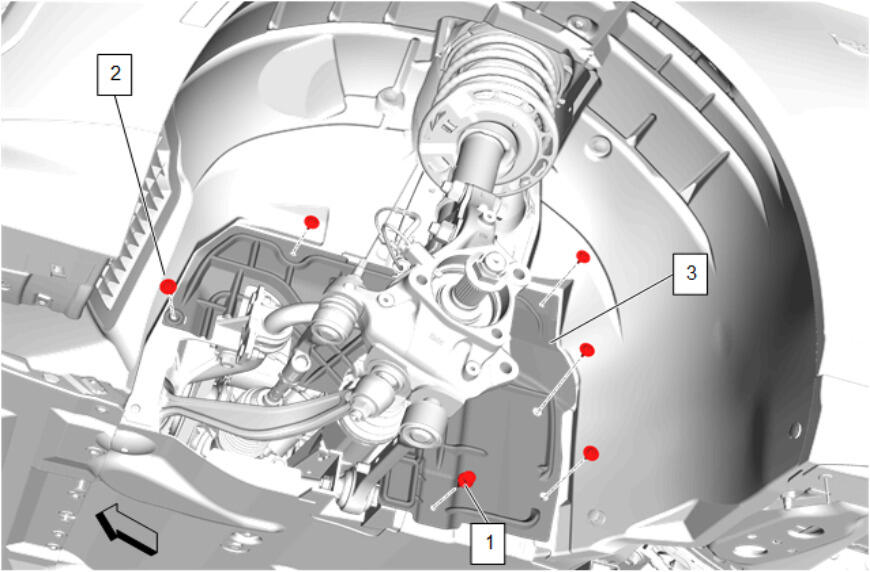

Front Wheelhouse Liner (3) - Install
- Front Wheelhouse Liner Retainer (2) - Install [4x]
- Front Wheelhouse Liner Screw (1) - Install and tighten [7x] - Fastener Specifications
Front Bumper Fascia Air Deflector Bolt (1) - Install and tighten - Fastener Specifications
- Front Bumper Fascia Bolt (2) - Install and tighten - Fastener Specifications
- If equipped with AWD:
Engine Front Splash Shield (3) - Install
- Engine Front Splash Shield Screw (2) - Install and tighten [5x] - Fastener Specifications
- Push Pin (1) - Install
- If equipped with RWD:
Engine Front Splash Shield (3) - Install
- Push Pin (2) - Install [2x]
- Engine Front Splash Shield Screw (1) - Install and tighten [5x] - Fastener Specifications
Front Tire Front Air Deflector (2) - Install
- Front Tire Front Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
Front Compartment Side Sight Shield (2) - Install
- Front Compartment Side Sight Shield Retainer (1) - Install [2x]
Hood Rear Outer Air Inlet Seal (2) - Install
- Hood Rear Outer Air Inlet Seal Retainer (1) - Install [2x]
Install the air inlet grille panel extension (1).
- Remove the masking tape.
- Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
With V03, they will have 3 bolts. Without V03, they will have 4 bolts.
