Removal Procedure

Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Tire Front Air Deflector Bolt (1) - Remove [4x]
Front Tire Front Air Deflector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt (1) - Remove [3x]
Front Bumper Fascia Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- Quantity of fasteners may vary based on option content.
- Components removed for graphic clarity.
Engine Front Splash Shield Retainer (2) - Remove [2x]
Engine Front Splash Shield Bolt (1) - Remove [5x]
Engine Front Splash Shield (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Components removed for graphic clarity.

Front Wheelhouse Liner Screw (1) - Remove [7x]
Front Wheelhouse Liner Retainer (2) - Remove [4x]
Front Wheelhouse Liner (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

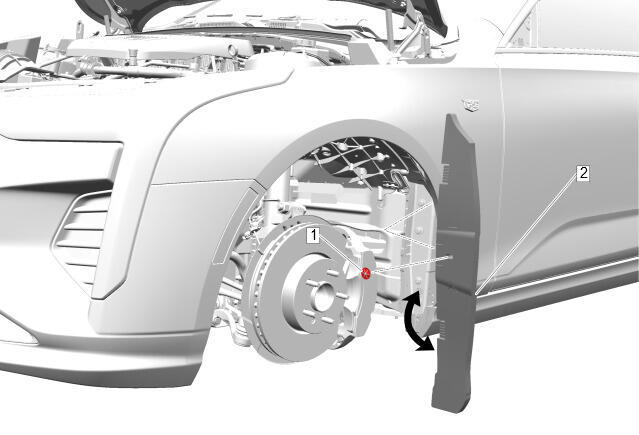

Front Fender Insulator Retainer (1) - Remove
Pull the front fender insulator (2) down and out from the front fender.
