Removal Procedure

  1. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation

  2. GM5414818Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove [3x]

  3. GM5414822Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove

  4. Release the wiring harness retaining tab.
  5. GM5414830Courtesy of GENERAL MOTORS COMPANY

    Release the front headlamp guide pin from the front bumper fascia guide (1).

  6. Front Headlamp (2) - Remove
  7. Disconnect all electrical connectors.
  8. GM5409324Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove

  9. Front Bumper Fascia Guide Bolt (2) - Remove [2x]
  10. Front Bumper Fascia Guide (3) - Remove

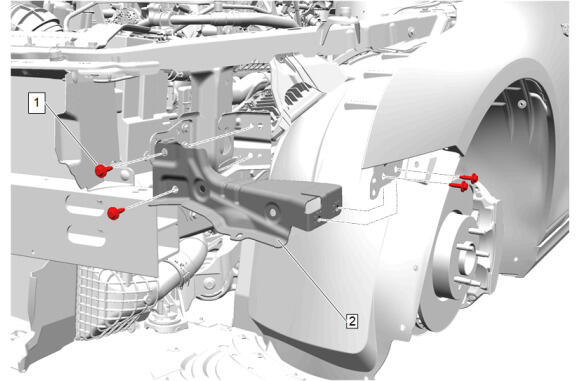

  11. GM5475532Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (1) - Remove [4x]

  12. Front Fender Front Brace (2) - Remove
