Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
  2. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
  3. GM5394612Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Left side shown, right side similar.
    • Quantity of fasteners may vary based on option content.

    Front Tire Front Air Deflector Bolt (1) - Remove [8x]

  4. Front Tire Front Air Deflector (2) - Remove [2x]
  5. GM5422163Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Bumper Fascia Air Deflector Bolt (1) - Remove [6x]

  6. Front Bumper Fascia Bolt (2) - Remove [4x]
  7. GM5421515Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Quantity of fasteners may vary based on option content.
    • Components removed for graphic clarity.
    • Left side shown, right side similar.

    Engine Front Splash Shield Retainer (2) - Remove [4x]

  8. Engine Front Splash Shield Bolt (1) - Remove [10x]
  9. Engine Front Splash Shield (3) - Remove [2x]
  10. GM5422180Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Left side shown, right side similar.
    • Components removed for graphic clarity.

    Front Wheelhouse Liner Bolt (1) - Remove [14x]

  11. Front Wheelhouse Liner Retainer (2) - Remove [8x]
  12. Front Wheelhouse Liner (3) - Remove [2x]
  13. GM5440606Courtesy of GENERAL MOTORS COMPANY

    Remove the left side upper front bumper fascia bolt (2).

  14. GM5440608Courtesy of GENERAL MOTORS COMPANY

    Remove the right side upper front bumper fascia bolt (2).

  15. GM5407644Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Air Deflector Screw (1) - Remove [6x]

  16. Front Bumper Fascia Center Air Deflector Bolt (2) - Remove [5x]
  17. Front Bumper Fascia Center Air Deflector Retainer (3) - Remove [2x]
  18. GM5440611Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Bolt (1) - Remove [6x]

  19. GM5440614Courtesy of GENERAL MOTORS COMPANY

    On the left side of the front bumper fascia carefully push a small nylon wedge between the front bumper fascia (1), the front bumper fascia guide (2), and the front headlamp (3). Insert a suitable flat-bladed plastic trim tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the left side of the front bumper fascia.

  20. GM5440613Courtesy of GENERAL MOTORS COMPANY

    Reposition the front bumper fascia on the right side to gain access to the electrical connector (1).

  21. Disconnect the electrical connector.
  22. GM5440614Courtesy of GENERAL MOTORS COMPANY

    On the left side of the front bumper fascia carefully push a small nylon wedge between the front bumper fascia (1), the front bumper fascia guide (2), and the front headlamp (3). Insert a suitable flat-bladed plastic trim tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the left side of the front bumper fascia.

  23. GM5408645Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, remove the fascia (1)

  24. GM5414818Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove [3x]

  25. GM5414822Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove

  26. Release the wiring harness retaining tab.
  27. GM5414830Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Release the front headlamp guide pin from the front bumper fascia guide (1).

  28. Remove the left and right side headlamps (2).
  29. Disconnect all electrical connectors.
  30. GM5470177Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Duct Retainer - Right Side (1) - Remove [3x]

  31. GM5470179Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Rear Duct - Right Side (1) - Remove

  32. GM5454422Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Duct Retainer - Right Side (1) - Remove [3x]

  33. GM5454427Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Duct Retainer - Right Side (1) - Remove [2x]

  34. GM5454437Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Front Duct - Right Side (1) - Remove

  35. GM5471812Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Bracket Bolt (1) - Remove [3x]

  36. Charge Air Cooler Upper Bracket Nut (2) - Loosen
  37. Reposition the engine auxiliary radiator assembly.

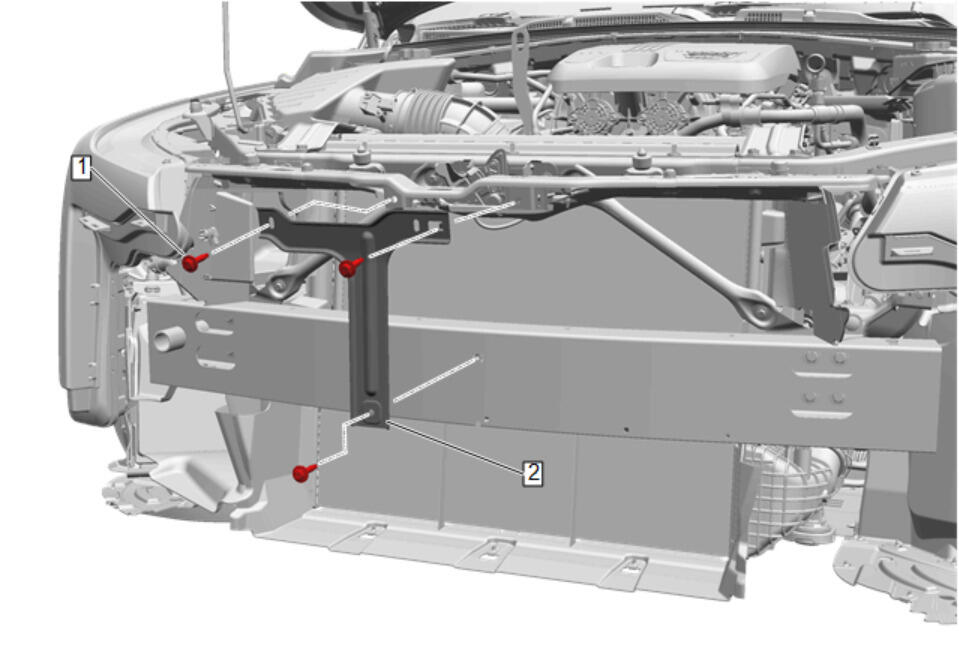

  38. GM5410889Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Support Brace Bolt (1) - Remove [3x]

  39. Front Bumper Fascia Support Brace (2) - Remove
  40. GM5422202Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front End Sheet Metal Cross Brace Bolt (1) - Remove [4x]

  41. Front End Sheet Metal Cross Brace - Left Side (2) - Remove [2x]
  42. GM5482482Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace Bolt (1) - Remove [2x]

  43. Front End Sheet Metal Cross Brace - Right Side (2) - Remove
  44. GM5412183Courtesy of GENERAL MOTORS COMPANY

    Headlamp Bolt (1) - Remove [2x]

  45. Radiator Air Upper Baffle Retainer (2) - Remove [2x]
  46. GM5412184Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Support Bolt (1) - Remove [2x]

  47. Pull the front bumper fascia center support (2) out from under both headlamps.
  48. GM5485943Courtesy of GENERAL MOTORS COMPANY

    Horn Bolt (1) - Remove [2x]

  49. Horn (2) - Reposition [2x]
  50. Disconnect the electrical connectors.

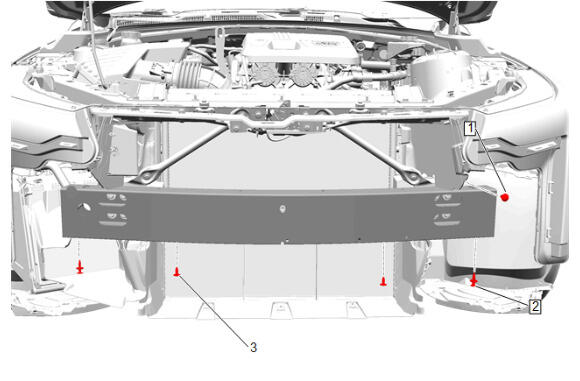

  51. GM5518513Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct Retainer (1) - Remove [2x]

  52. Radiator Air Lower Seal Retainer (2) - Remove [2x]
  53. Radiator Air Lower Baffle Retainer (3) - Remove [2x]
  54. GM5412380Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Impact Bar Bolt (1) - Remove [8x]

  55. Front Bumper Impact Bar (2) - Remove
  56. Release the wiring harness retaining tab.
  57. GM5313403Courtesy of GENERAL MOTORS COMPANY

    Radiator Upper Bracket Bolt (1) - Remove [2x]

  58. Radiator Upper Bracket - Left Side (2) - Remove
  59. GM5313404Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Remove

  60. Radiator Upper Bracket Bolt (2) - Remove [2x]
  61. Radiator Upper Bracket - Right Side (3) - Remove
  62. GM5422172Courtesy of GENERAL MOTORS COMPANY

    Mark the location of the hood primary and secondary latch (1) with a grease pencil.

  63. Hood Primary and Secondary Latch Bolt (2) - Remove [2x]
  64. GM5422176Courtesy of GENERAL MOTORS COMPANY

    Hood Primary and Secondary Latch (1) - Reposition away

  65. Release the tabs on the front bumper fascia (2) from the headlamp on both sides and reposition the upper portion of the front bumper fascia (2) away.

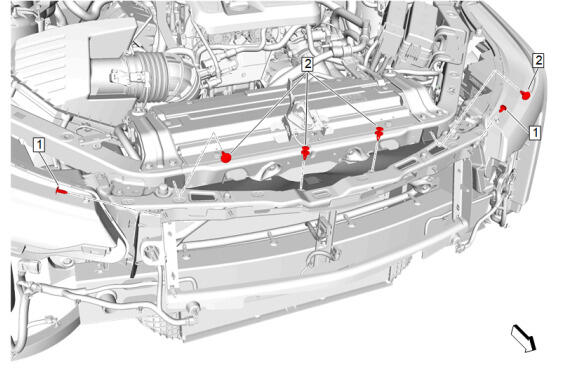

  66. GM5422177Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer - Side (1) - Remove [2x]

  67. Radiator Air Upper Baffle Retainer (2) - Remove [4x]
  68. GM5422178Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle (1) - Remove

  69. GM5405710Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (1) - Remove

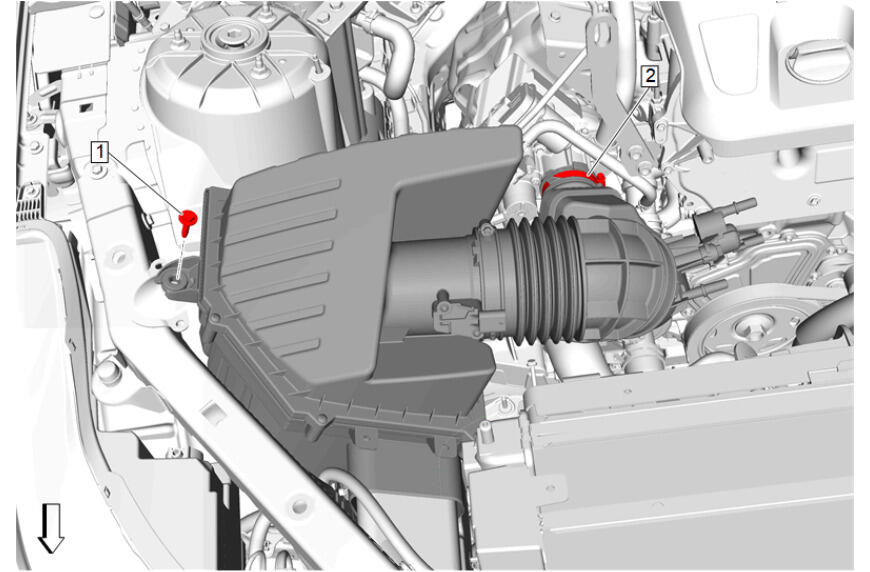

  70. GM5427523Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Bolt (1) - Remove

  71. Air Cleaner Outlet Duct Clamp (2) - Loosen

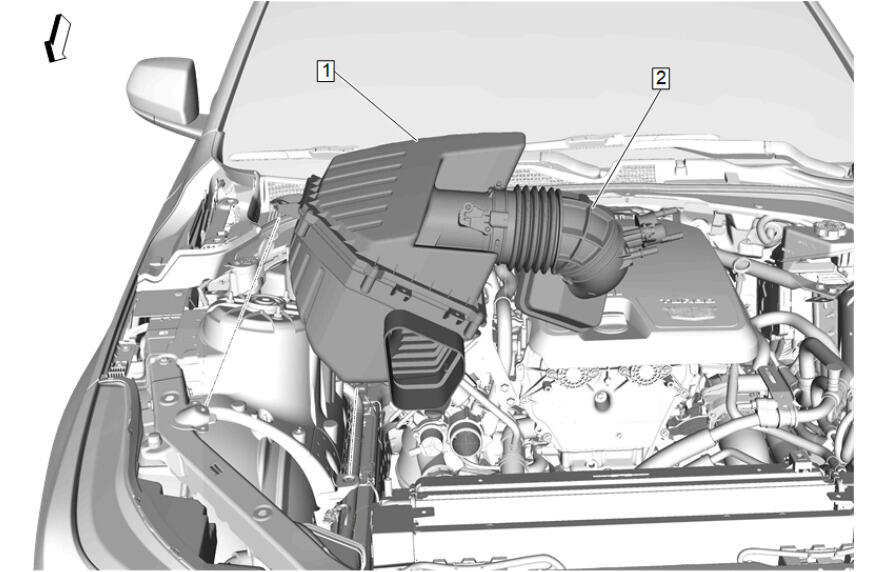

  72. GM5427525Courtesy of GENERAL MOTORS COMPANY

    Remove the air cleaner (1) and air cleaner outlet duct (2) as an assembly.

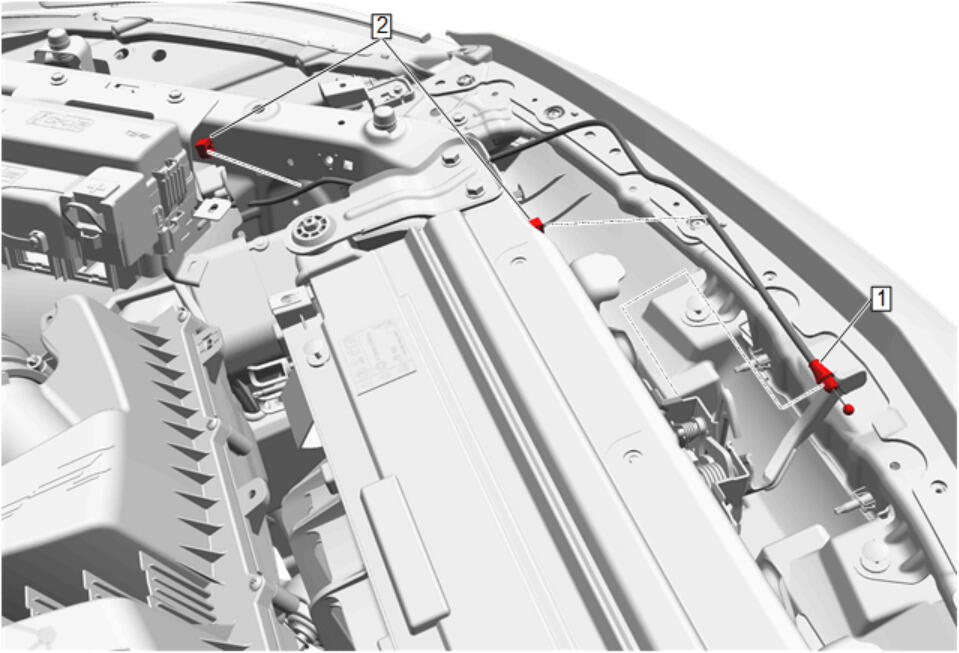

  73. GM5300279Courtesy of GENERAL MOTORS COMPANY

    Disconnect the cable end retainer (1) from the latch.

  74. Release the hood primary latch release cable from the 2 retainer (2).
  75. Reposition the hood primary latch release cable.
  76. GM5492236Courtesy of GENERAL MOTORS COMPANY

    Body Wiring Harness Fuse Block Bracket Bolt (1) - Remove [2x]

  77. Body Wiring Harness Fuse Block Bracket (2) - Reposition
  78. GM5492238Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket Nut (1) - Remove

  79. Engine Control Module Bracket (2) - Reposition
  80. GM5482168Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable Ground Bolt (1) - Remove

  81. Battery Negative Cable Ground (2) Reposition

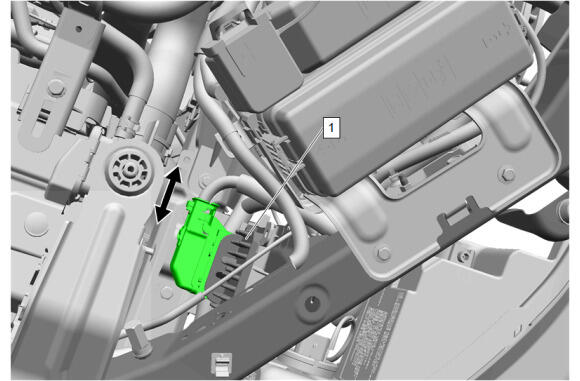

  82. GM5519304Courtesy of GENERAL MOTORS COMPANY

    Slide the transmission control module and connector (1) from the bracket rear ward to reposition.

  83. GM5404539Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Module Bracket Bolt (1) - Remove

  84. Rotate the transmission control module bracket (2) forward a quarter of turn and remove.
  85. GM5522059Courtesy of GENERAL MOTORS COMPANY

    Forward Lamp Wire Harness Ground Bolt (1) - Remove [2x]

  86. Forward Lamp Wire Harness Ground Terminal (2) - Reposition [2x]
  87. GM5522057Courtesy of GENERAL MOTORS COMPANY

    Engine Wire Harness Ground Bolt (1) - Remove

  88. Engine Wire Harness Ground Terminal (2) - Reposition
  89. GM5522102Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Hood Hold-Open Device Warning .

    Hood Hold Open Rod Bolt (1) - Remove [2x]

  90. Hood Hold Open Rod (2) - Remove
  91. GM5318217Courtesy of GENERAL MOTORS COMPANY

    Remove the 3 left side upper front compartment front panel bolt (1).

  92. GM5492233Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt - Left Side (1) - Remove [2x]

  93. Front Compartment Front Panel Bolt - Left Side (2) - Remove [3x]
  94. Reposition the wiring harness.
  95. GM5492240Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Panel Bolt - Left Side (1) - Remove [2x]

  96. GM5318222Courtesy of GENERAL MOTORS COMPANY

    Remove the 3 right side upper front compartment front panel bolt (1).

  97. GM5493270Courtesy of GENERAL MOTORS COMPANY

    Front Fender Bolt (1) - Right Side - Remove [2x]

  98. Front Compartment Front Panel Bolt - Right Side (2) - Remove [3x]
  99. GM5493272Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Panel Bolt - Right Side (1) - Remove [2x]

  100. GM5318224Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Panel (1) - Remove
