Removal Procedure

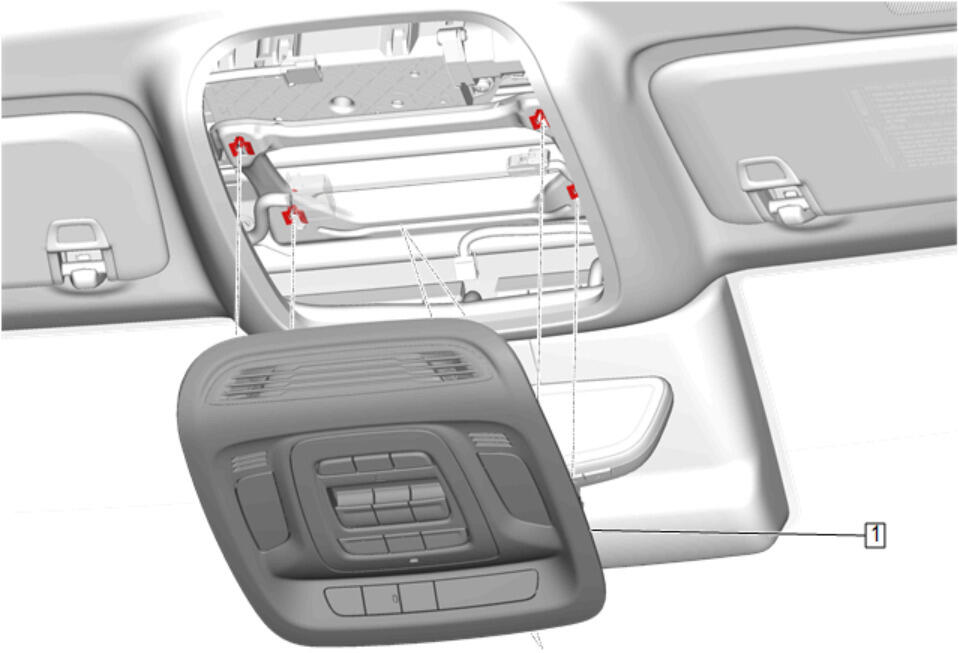

With a flat - bladed trim tool, release the tab on the left side at the most rearward of the roof console (1) and pull down on console, then release the retaining clip in the middle of the console and pull down, then release the retaining clip at the most forward of the console and pull down the console.
- With a flat - bladed trim tool, release the tab on the right side at the most rearward of the roof console (1) and pull down on console, then release the retaining clip in the middle of the console and pull down, then release the retaining clip at the most forward of the console and pull down the console.

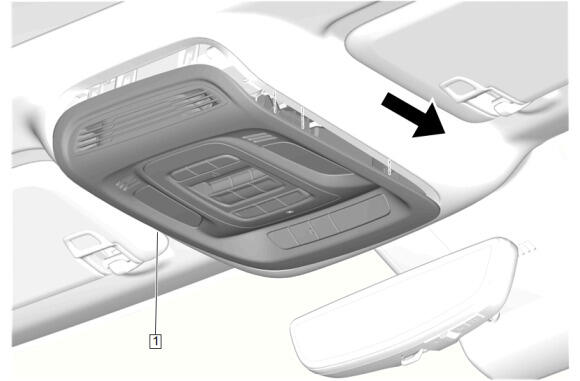

Pull the roof console (1) rearward to remove the front roof console tab from the headliner.
- Disconnect the electrical connectors.
- Transfer components as necessary.
CAUTION:
Do not exert downward force at the forward or rearward edge of the roof console assembly as irreversible damage will occur.
