Installation Procedure

  1. Connect the electrical connectors.
  2. GM5334280Courtesy of GENERAL MOTORS COMPANY

    Install the roof console (1) and front roof console tab into the headliner.

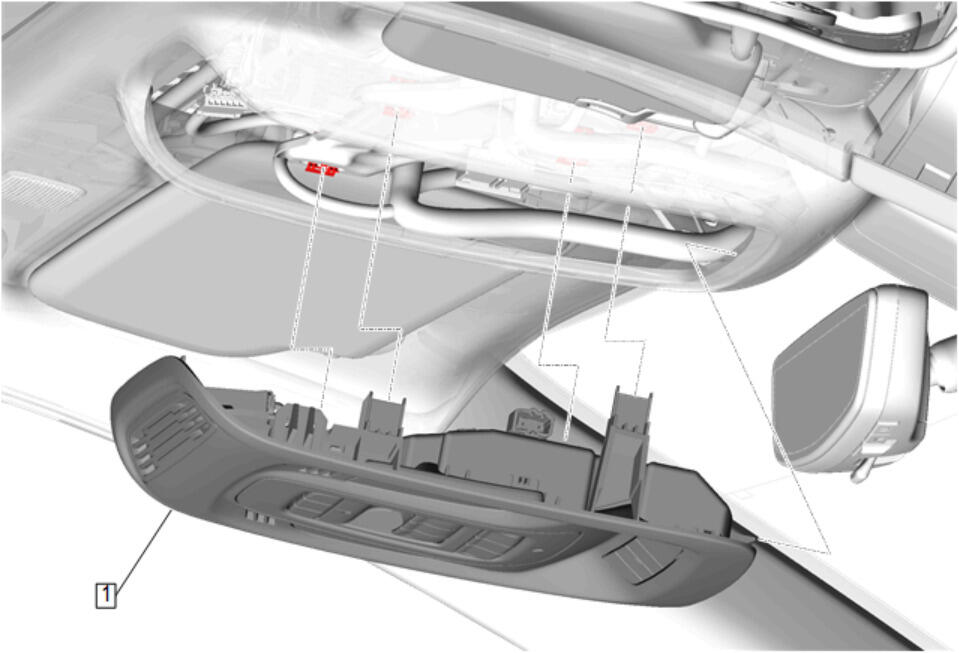

  3. GM5334770Courtesy of GENERAL MOTORS COMPANY

    Push up both sides of the roof console (1) along the retaining clips to install.
