Installation Procedure

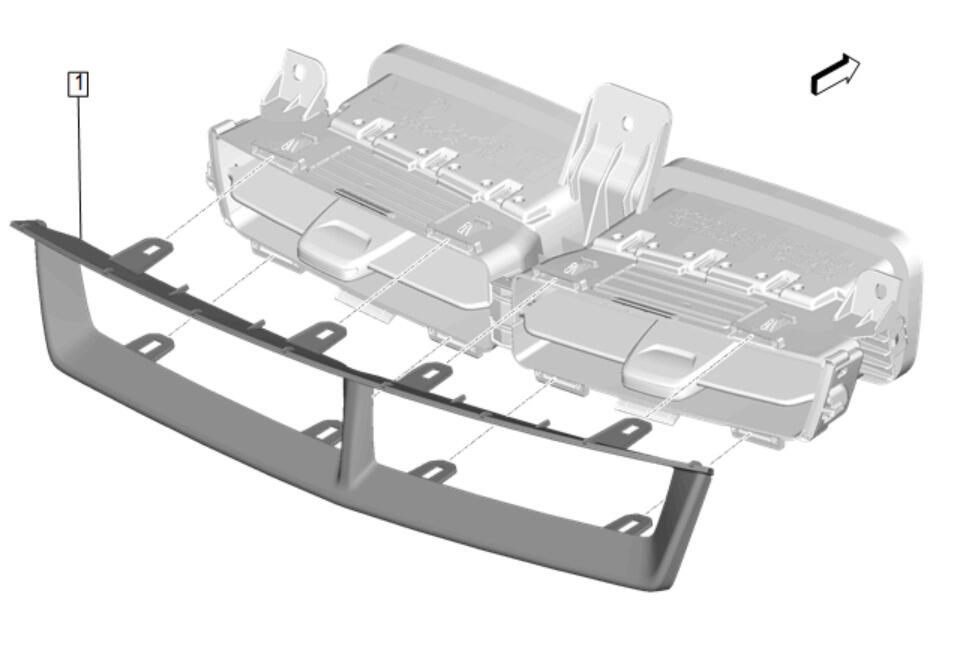

  1. GM5422156Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel trim plate (1) to the instrument panel center air outlet.

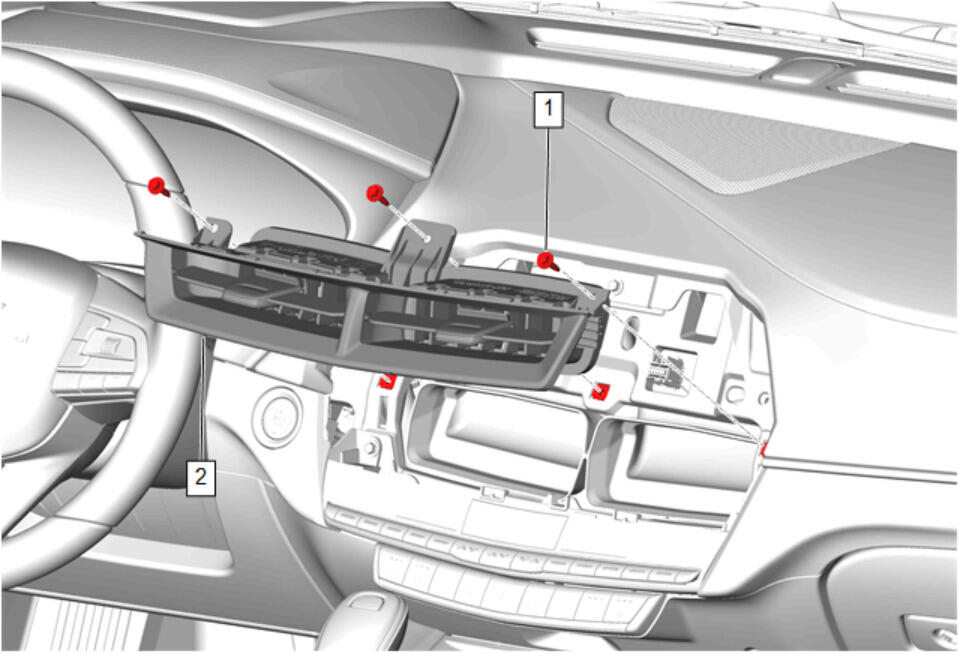

  2. GM5422150Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (2) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [3x] - Fastener Specifications
  4. GM5422046Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  5. Radio Control (2) - Install
  6. Radio Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  7. GM5422026Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install

  8. GM5422024Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Radio Front Trim Plate (1) - Install
