Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

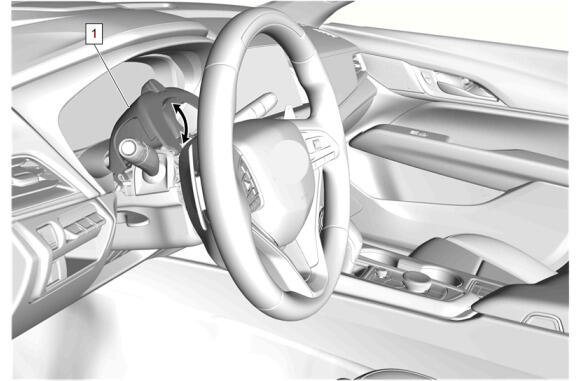

Driver Monitoring System Camera (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Instrument panel steering column upper trim cover is removed for graphic clarity.

Connect the electrical connector (1)
Courtesy of GENERAL MOTORS COMPANY

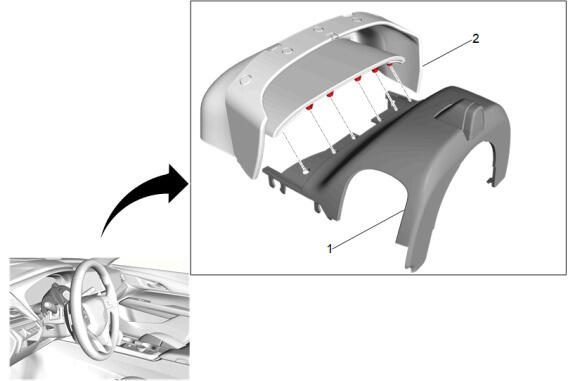

Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).
Courtesy of GENERAL MOTORS COMPANY

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
