Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

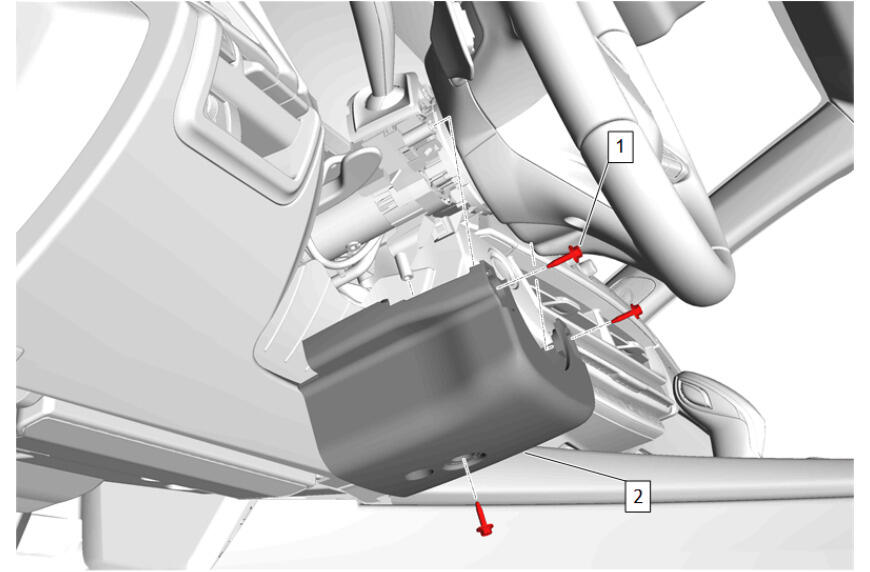

Instrument Panel Steering Column Lower Trim Cover (2) - Install

CAUTION:

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Instrument panel steering column upper trim cover is removed for graphic clarity.

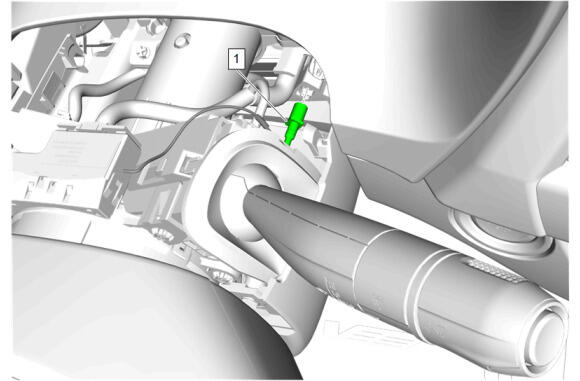

Connect the electrical connector (1), if equipped.
Courtesy of GENERAL MOTORS COMPANY

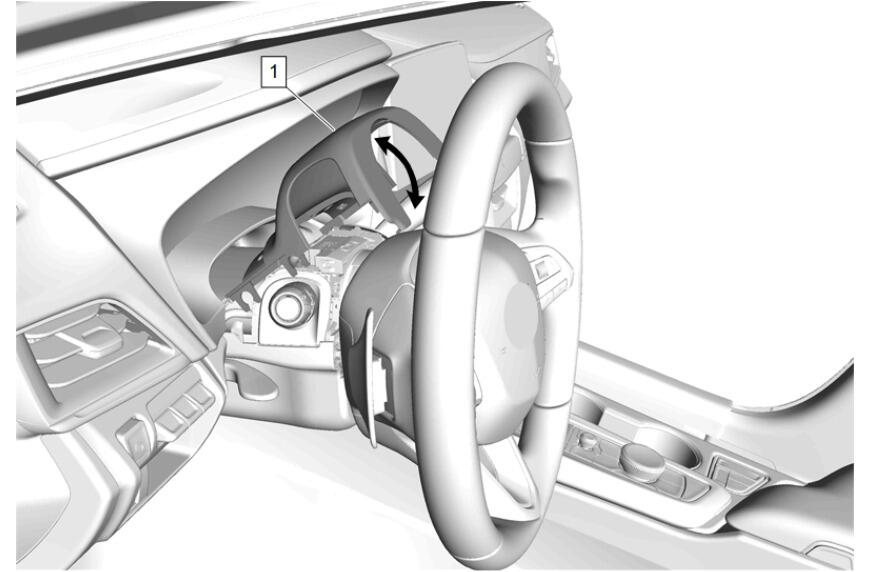

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
