Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

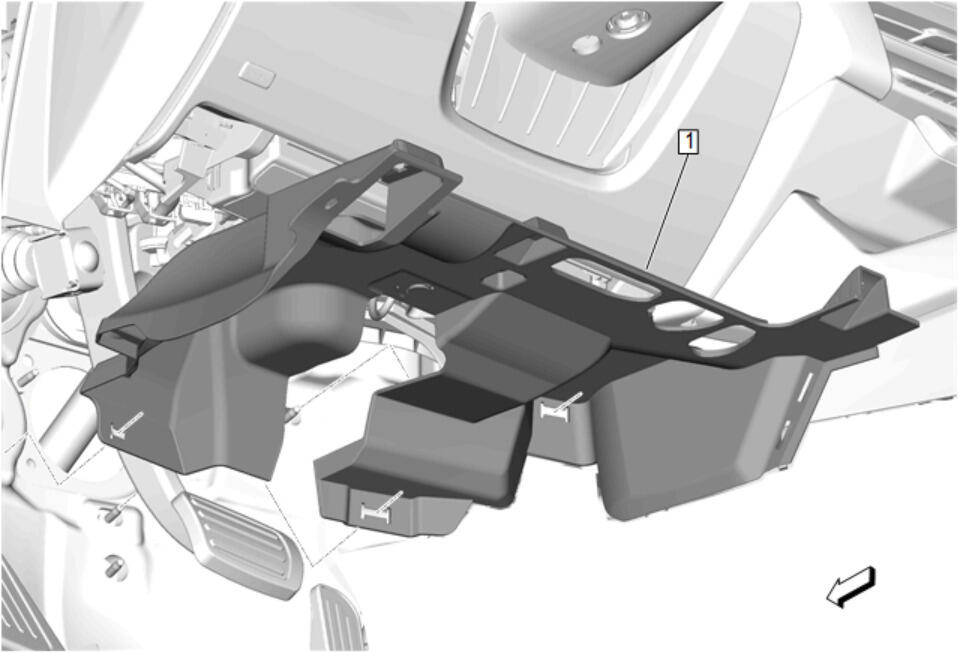

Instrument Panel Lower Trim Panel Insulator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

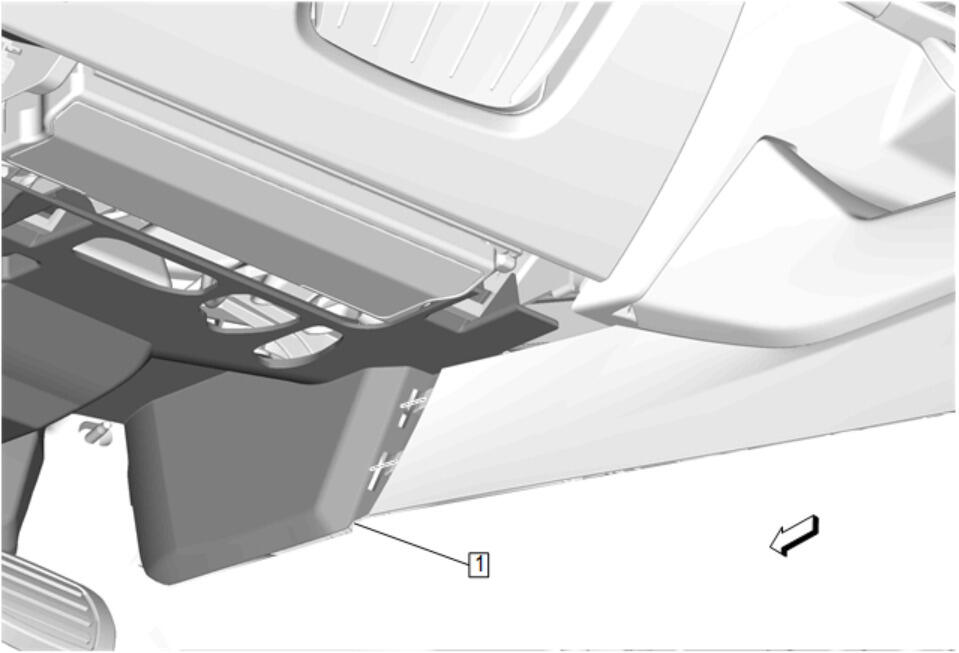

Install the tabs into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

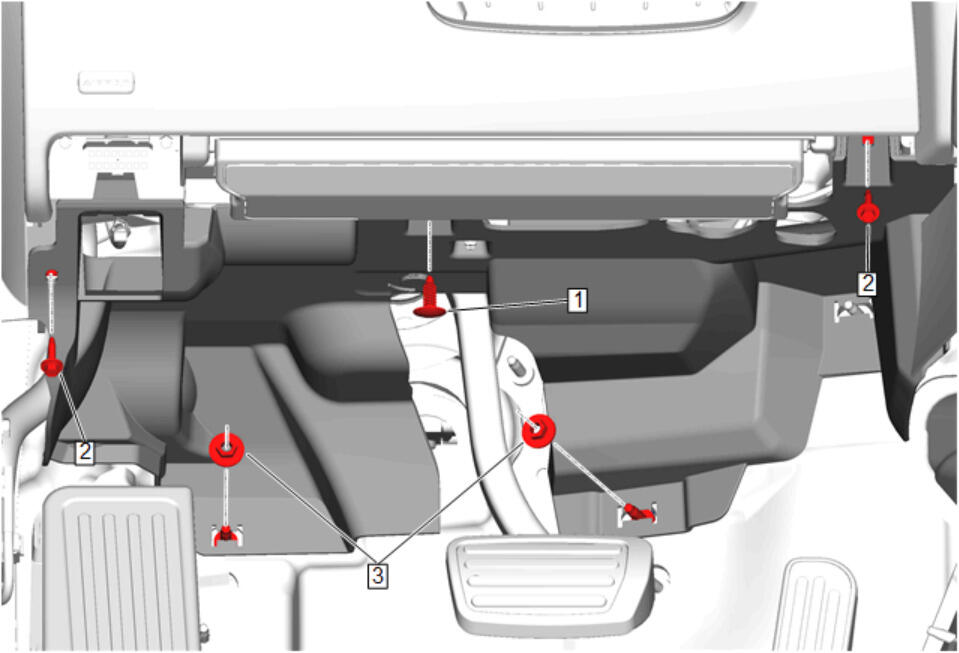

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Install

CAUTION:

Instrument Panel Insulator Bolt (2) - Install and tighten [2x] - Fastener Specifications
Instrument Panel Insulator Nut (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

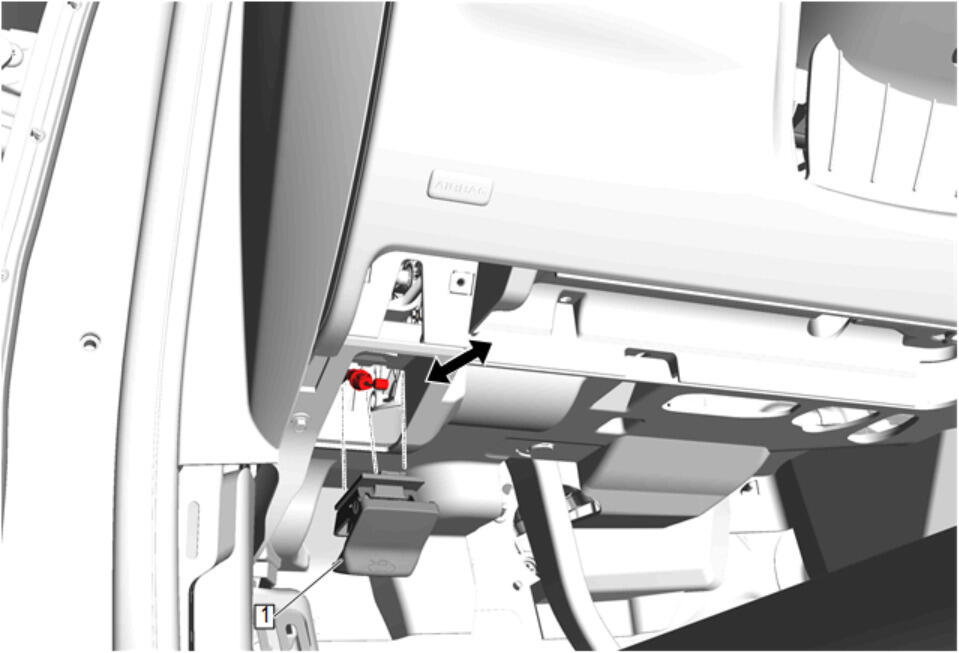

Attach the hood primary latch release cable end retainer to the hood primary latch release cable handle (1).
