Installation Procedure

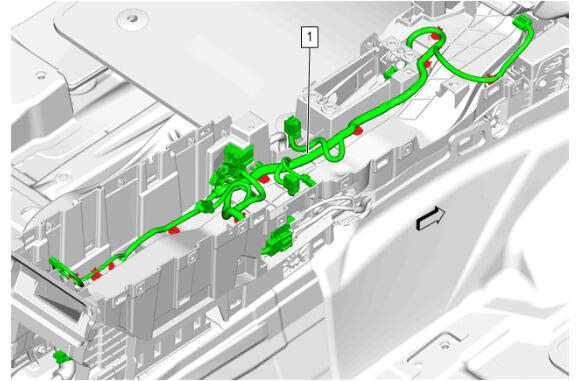

  1. GM5504514Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness (1) - Install

  2. GM5331913Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness (1) - Install

  3. GM5323222Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Automatic Transmission Electronic Control (2) - Install
    5. CAUTION:

    Refer to Fastener Caution .

  5. Automatic Transmission Control Bolt (1) - Install and tighten [4x] - Fastener Specifications

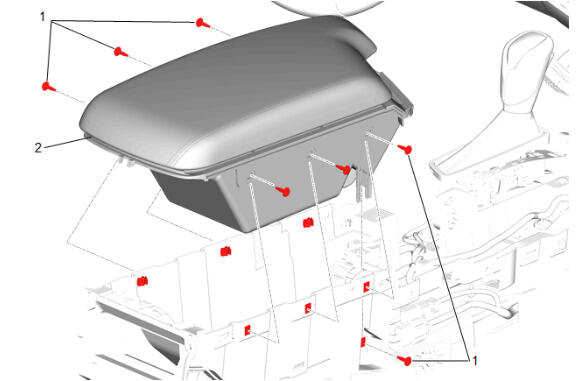

  6. GM5504531Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  7. Front Floor Console Armrest (2) - Install
  8. Front Floor Console Armrest Bolt (1) - Install and tighten [7x] - Fastener Specifications
  9. GM5501921Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  10. Front Floor Console Cup Holder (1) - Install
  11. GM5501920Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [8x] - Fastener Specifications

  12. GM5488339Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  13. Wireless Charging System Module (2) - Install
  14. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  15. GM5502706Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

  16. Connect the electrical connector.
  17. GM5502705Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (2) - Install and tighten [2x] - Fastener Specifications

  18. Front Floor Console Variable 1 Liner (1) - Install

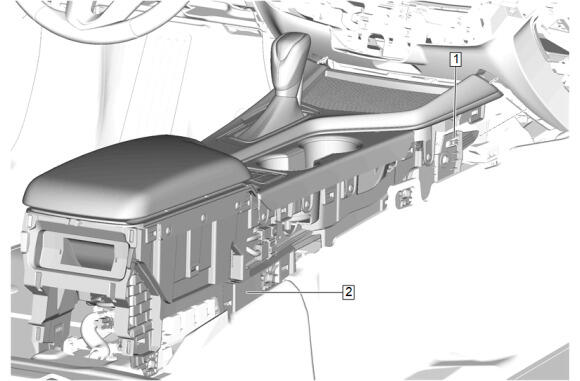

  19. GM5643538Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (2) back into the instrument panel.

  20. Engage the tabs (1) on both sides of the front floor console.

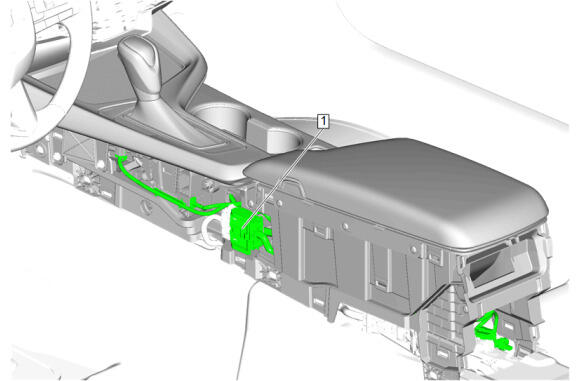

  21. GM5643539Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console harness connector (1).

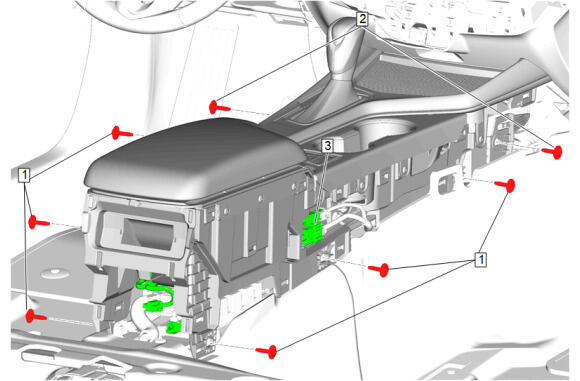

  22. GM5643636Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console harness connector (3).

  23. Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications
  24. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  25. GM5485756Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  26. Front Floor Console Rear Trim Panel (2) - Install
  27. Front Floor Console Rear Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  28. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  29. Return the seat to its original position.
  30. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  31. Return the seat to its original position.
  32. Perform the necessary programming and setup procedure:Control Module References
