Installation Procedure

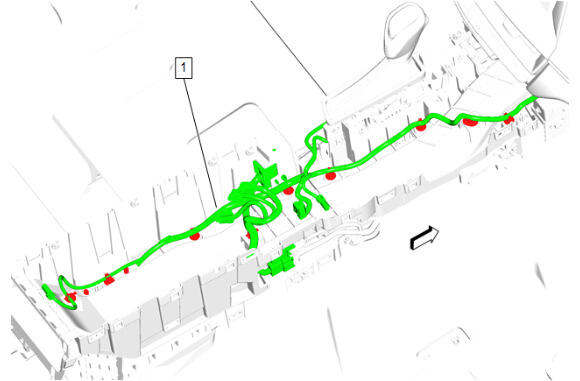

  1. GM5504517Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness (1) - Install

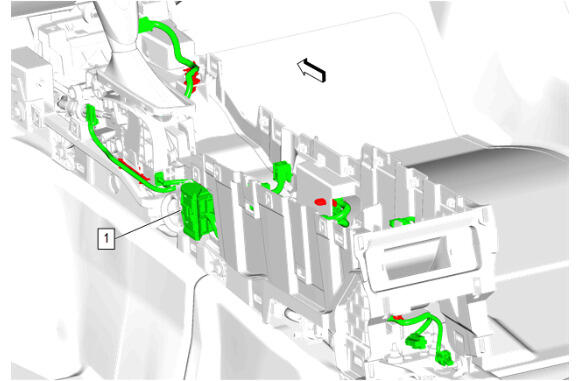

  2. GM5504515Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Wiring Harness (1) - Install

  3. GM5504531Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Floor Console Armrest Bolt (1) - Install and tighten [7x] - Fastener Specifications
  5. GM5501921Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  6. Front Floor Console Cup Holder (1) - Install
  7. GM5501920Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Cup Holder Bolt (1) - Install and tighten [8x] - Fastener Specifications

  8. GM5488339Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  9. Wireless Charging System Module (2) - Install
  10. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  11. GM5488424Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten - Fastener Specifications

  12. Automatic Transmission Range Selector Lever Cable (2) - Install and tighten - Fastener Specifications
  13. Connect the front floor console wiring harness (3) to the body wiring harness.
  14. GM5487916Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

  15. GM5644700Courtesy of GENERAL MOTORS COMPANY

    Install the automatic transmission control lever knob (1) then press down to engage the retainer.

  16. Carefully pull upward on the automatic transmission control lever knob (1) to ensure that the retainer is engaged.
  17. GM5487915Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (4) - Install and tighten [2x] - Fastener Specifications

  18. Connect the electrical connector (3).
  19. Insert the transmission control lever boot (2) into the front floor console trim plate.
  20. Shift the transmission through each gear and ensure that the shift lever knob operates properly.
  21. Front Floor Console Variable 1 Liner (1) - Install
  22. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  23. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications

  24. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  25. GM5485756Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  26. Front Floor Console Rear Trim Panel (2) - Install
  27. Front Floor Console Rear Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  28. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  29. Return the seat to its original position.
  30. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  31. Return the seat to its original position.
