Installation Procedure

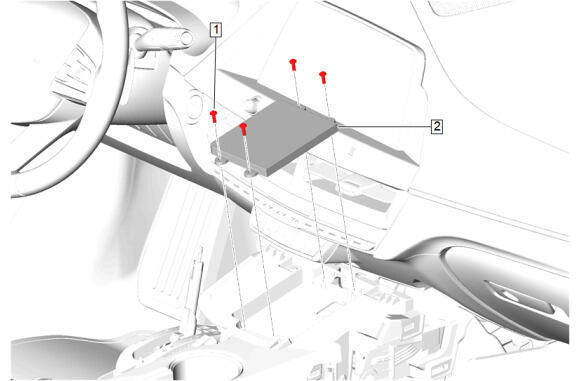

  1. GM5488316Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Front Cover (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. GM5502706Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (1) - Install

  4. Connect the electrical connector.
  5. GM5502705Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (2) - Install and tighten [2x] - Fastener Specifications

  6. Front Floor Console Variable 1 Liner (1) - Install
  7. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  8. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console harness connector on both sides of the front floor console.

  9. Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications
  10. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  11. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  12. Return the seat to its original position.
  13. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  14. Return the seat to its original position.
