Installation Procedure

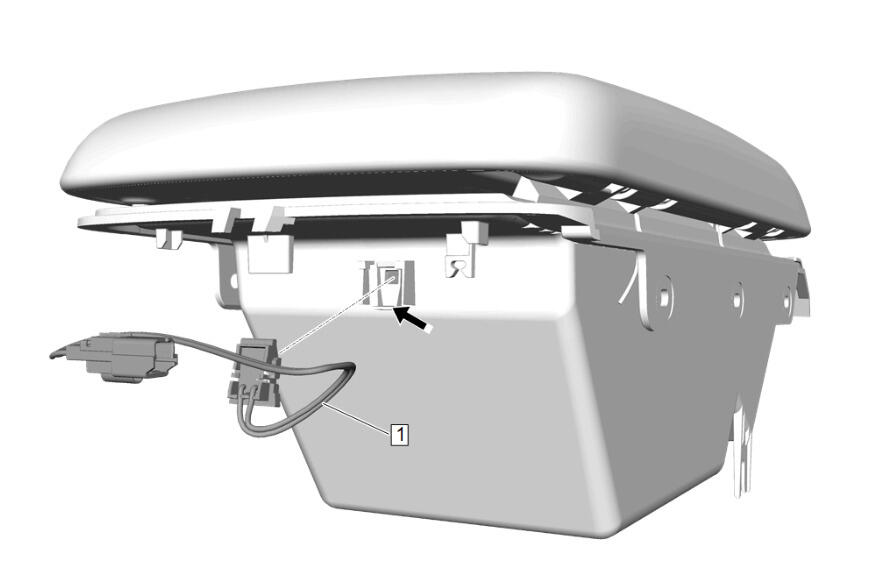

  1. GM5448547Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment Lamp (1) - Install

  2. Ensure the retaining tab has fully secured.

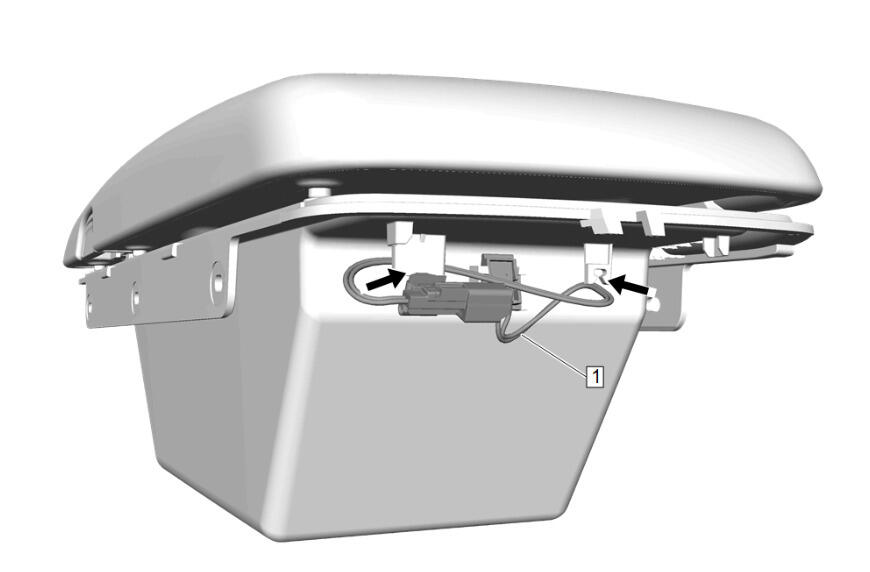

  3. GM5448546Courtesy of GENERAL MOTORS COMPANY

    Secure the front floor console compartment lamp wiring harness (1) to the front floor console compartment.

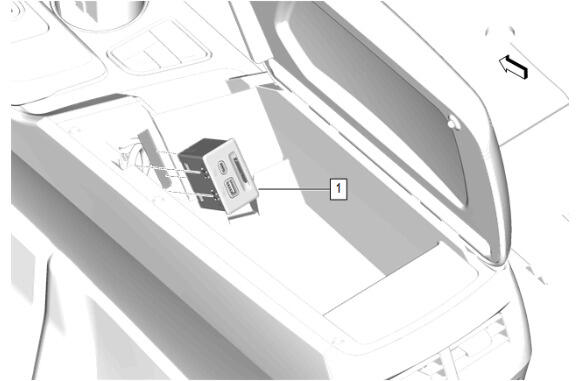

  4. GM5503534Courtesy of GENERAL MOTORS COMPANY

    Multimedia Receptacle (1) - Install

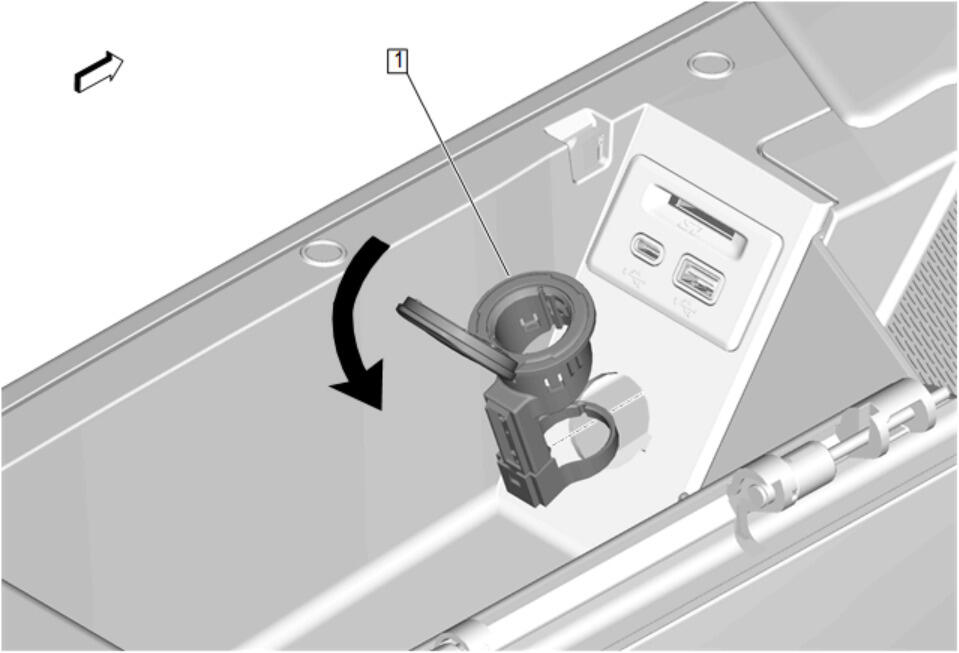

  5. GM5366170Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Insert the rear of the front floor console accessory power rear receptacle retainer (1) into the armrest compartment and tilt it down and into the compartment.

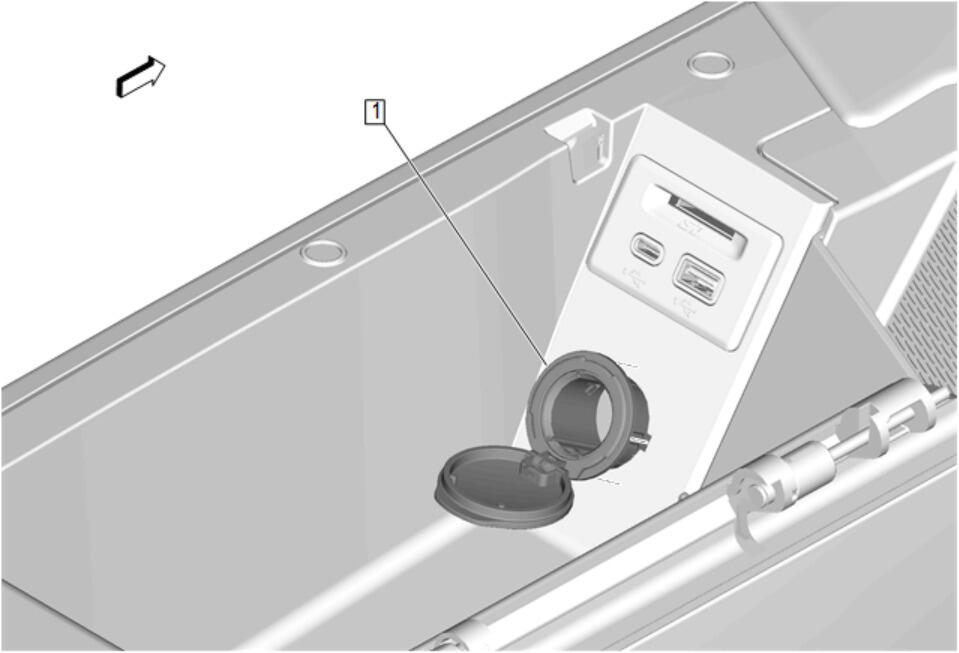

  6. GM5366167Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Align the tab with the armrest compartment opening and insert the front floor console accessory power rear receptacle retainer (1).

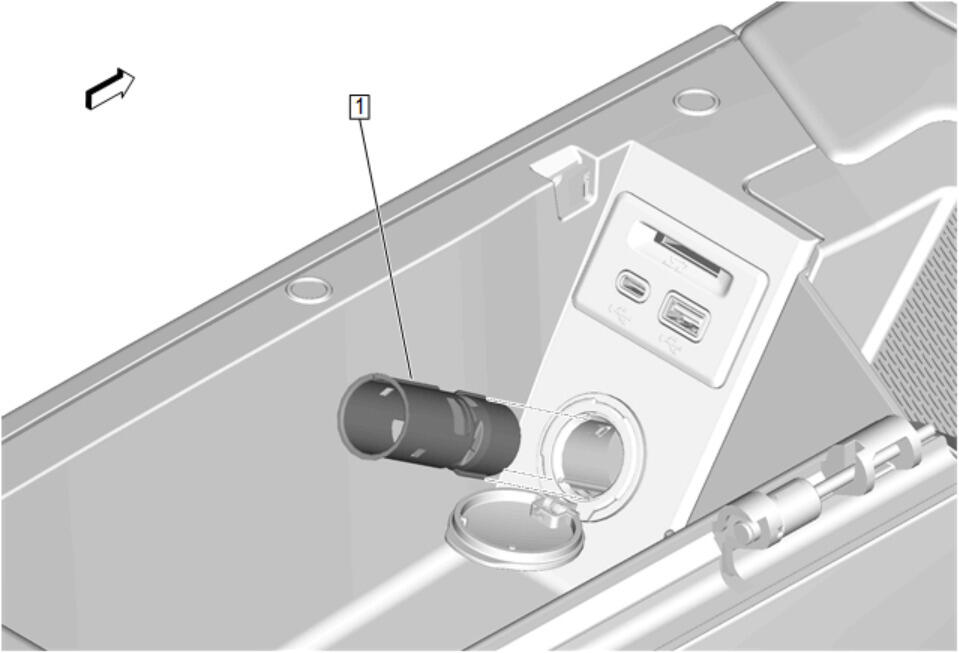

  7. GM5366227Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Install the receptacle (1) by pressing into place until fully seated.

  8. Align the tabs on the receptacle (1) to the slots in the retainer. Install the front floor console accessory power rear receptacle by pressing into place until fully seated.
  9. Install the auxiliary power outlet fuse.

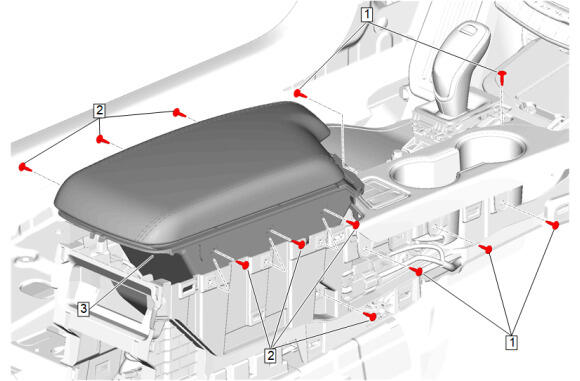

  10. GM5643812Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  11. Front Floor Console Armrest (3) - Install
  12. Attach the front floor console cup holder to the front floor console armrest (3).
    13. CAUTION:

    Refer to Fastener Caution .

  13. Front Floor Console Armrest Bolt (2) - Install and tighten [7x] - Fastener Specifications
  14. Front Floor Console Cup Holder Bolt (1) - Install [5x] - Fastener Specifications

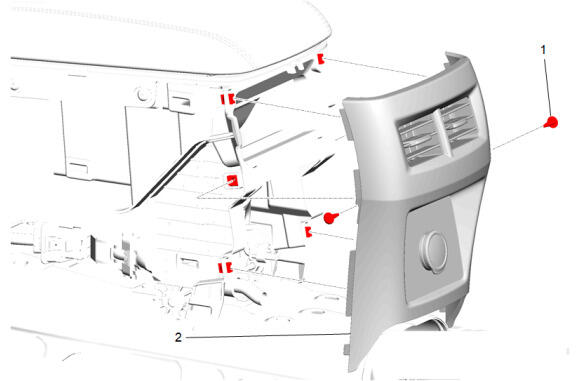

  15. GM5485756Courtesy of GENERAL MOTORS COMPANY

    Connect all electrical connectors.

  16. Front Floor Console Rear Trim Panel (2) - Install
  17. Front Floor Console Rear Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  18. GM5502706Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Front Floor Console Trim Plate (1) - Install
  20. GM5502705Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (2) - Install and tighten [2x] - Fastener Specifications

  21. Front Floor Console Variable 1 Liner (1) - Install
  22. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

  23. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Engage the tabs (3) on both sides of the front floor console.

  24. Connect the front floor console harness connector on both sides of the front floor console.
  25. Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications
  26. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
  27. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  28. Return the seat to its original position.
  29. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  30. Return the seat to its original position.
