Home >> Cadillac >> 2021 >> CT4 V, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Air Temperature, and Driver Information Center

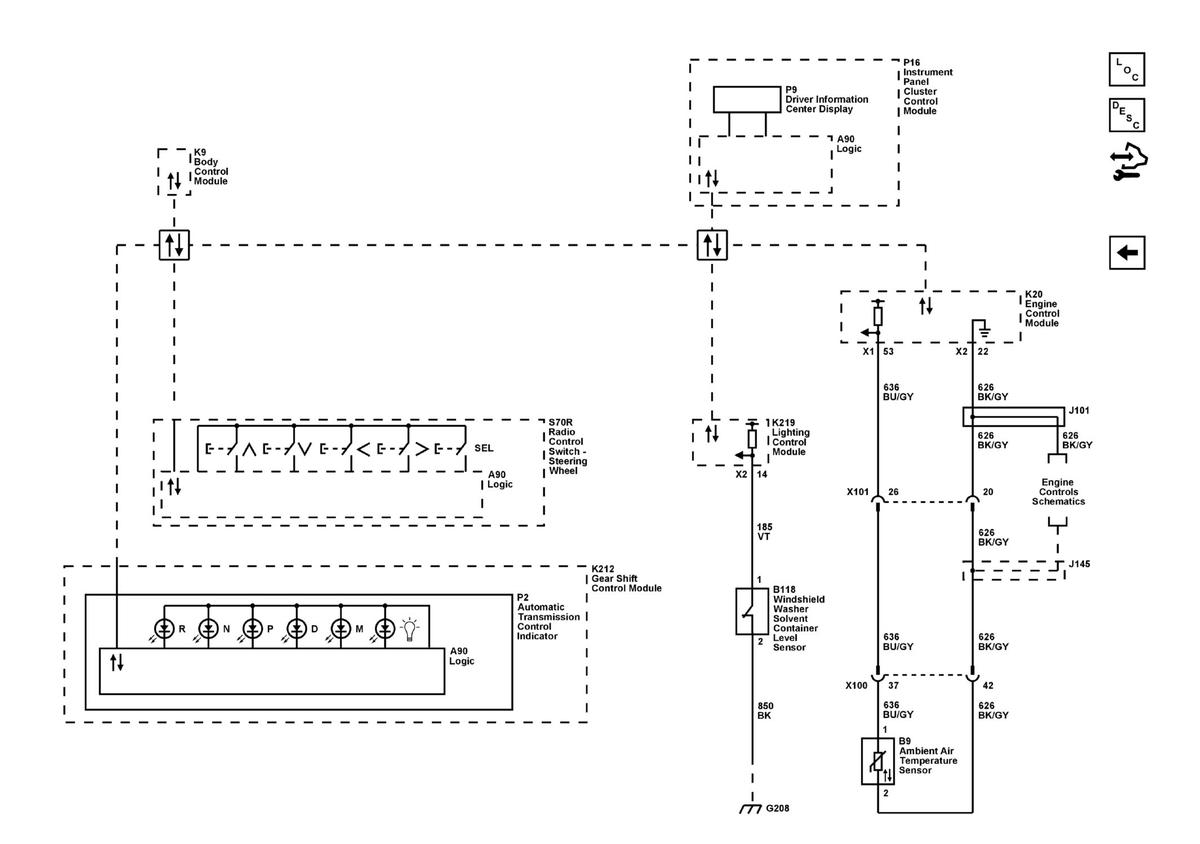

Air Temperature, and Driver Information Center

GM5522619

Courtesy of GENERAL MOTORS COMPANY
