Installation Procedure

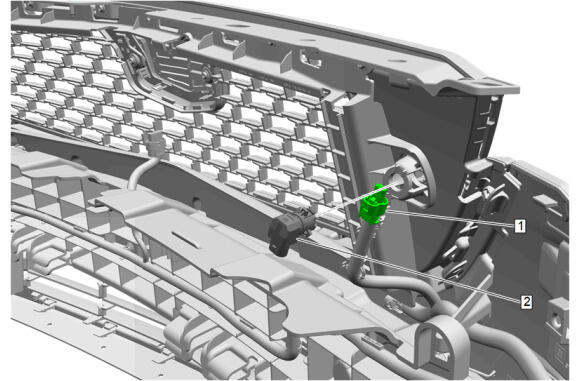

  1. GM5645575Courtesy of GENERAL MOTORS COMPANY

    Ambient Air Temperature Sensor (2) - Install

  2. Connect the electrical connector (1)
  3. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
