Fastener Specifications

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

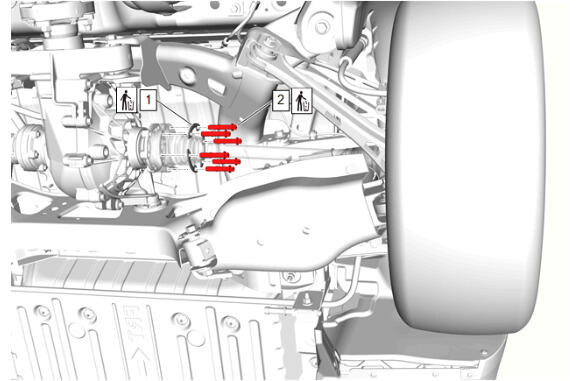

Front Wheel Drive Shaft Replacement - Left Side

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Front Wheel Drive Intermediate Shaft Seal	Yes	-	-	Front Wheel Drive Half Shaft Replacement - Left Side
2	Front Wheel Drive Intermediate Shaft Retaining Ring	Yes	-	-	Front Wheel Drive Half Shaft Replacement - Left Side

Courtesy of GENERAL MOTORS COMPANY

Front Wheel Drive Shaft Replacement - Right Side

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Front Wheel Drive Shaft Retaining Ring	Yes	-	-	Front Wheel Drive Half Shaft Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

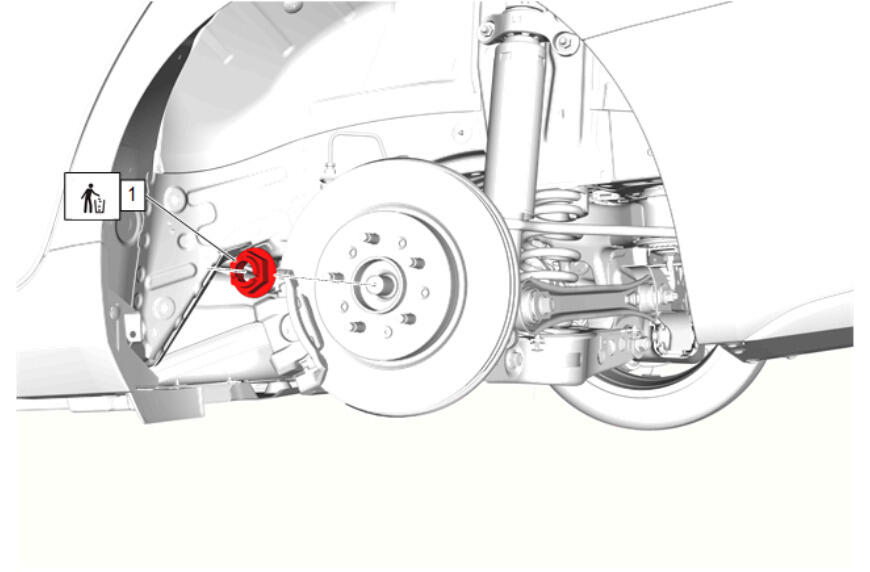

Front Wheel Drive Shaft Replacement

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Front Wheel Drive Shaft Nut	Yes	-	First Pass: 150 N.m (111 lb ft) Second Pass: Loosen 45 degrees Final Pass: 270 N.m (199 lb ft)	Front Wheel Drive Half Shaft Replacement - Left Side
1	Front Wheel Drive Shaft Nut	Yes	-	First Pass: 150 N.m (111 lb ft) Second Pass: Loosen 45 degrees Final Pass: 270 N.m (199 lb ft)	Front Wheel Drive Half Shaft Replacement - Right Side

Courtesy of GENERAL MOTORS COMPANY

Rear Wheel Drive Shaft Replacement

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Rear Wheel Drive Shaft Nut	Yes	-	First Pass: 150 N.m (111 lb ft) Second Pass: Loosen 45 degrees Final Pass: 270 N.m (199 lb ft)	Rear Wheel Drive Shaft Replacement - Left Side (LSY/L3B) , or Rear Wheel Drive Shaft Replacement - Left Side (LF4)
1	Rear Wheel Drive Shaft Nut	Yes	-	First Pass: 150 N.m (111 lb ft) Second Pass: Loosen 45 degrees Final Pass: 270 N.m (199 lb ft)	Rear Wheel Drive Shaft Replacement - Right Side (LSY) , or Rear Wheel Drive Shaft Replacement - Right Side (L3B) , or Rear Wheel Drive Shaft Replacement - Right Side (LF4)

Courtesy of GENERAL MOTORS COMPANY

Rear Wheel Drive Shaft Replacement

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Rear Wheel Drive Shaft Washer	Yes	-	-	Rear Wheel Drive Shaft Replacement - Left Side (LSY/L3B) , or Rear Wheel Drive Shaft Replacement - Left Side (LF4)

Courtesy of GENERAL MOTORS COMPANY

Rear Wheel Drive Shaft Replacement

Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Specification	Procedure
Callout	Component Name [Component Quantity]	Single Use Fastener/Component	Thread Locking Adhesive Required	Metric (English)	Procedure
1	Wheel drive shaft flange washer [3x]	Yes	-	-	Rear Wheel Drive Shaft Replacement - Left Side (LSY/L3B) , or Rear Wheel Drive Shaft Replacement - Left Side (LF4)
1	Wheel drive shaft flange washer [3x]	Yes	-	-	Rear Wheel Drive Shaft Replacement - Right Side (LSY) , or Rear Wheel Drive Shaft Replacement - Right Side (L3B) , or Rear Wheel Drive Shaft Replacement - Right Side (LF4)
2	Rear wheel drive shaft universal joint retainer [3x]	Yes	Yes	First Pass: 50 N.m (37 lb ft) Final Pass: 40 - 50 degrees	Rear Wheel Drive Shaft Replacement - Left Side (LSY/L3B) , or Rear Wheel Drive Shaft Replacement - Left Side (LF4)
2	Rear wheel drive shaft universal joint retainer [3x]	Yes	Yes	First Pass: 50 N.m (37 lb ft) Final Pass: 40 - 50 degrees	Rear Wheel Drive Shaft Replacement - Right Side (LSY) , or Rear Wheel Drive Shaft Replacement - Right Side (L3B) , or Rear Wheel Drive Shaft Replacement - Right Side (LF4)
