Special Tools

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

DT-50921 Output Carrier Lifter
J-26941 Bushing and Bearing Remover

Equivalent regional tools: Special Tools

Courtesy of GENERAL MOTORS COMPANY

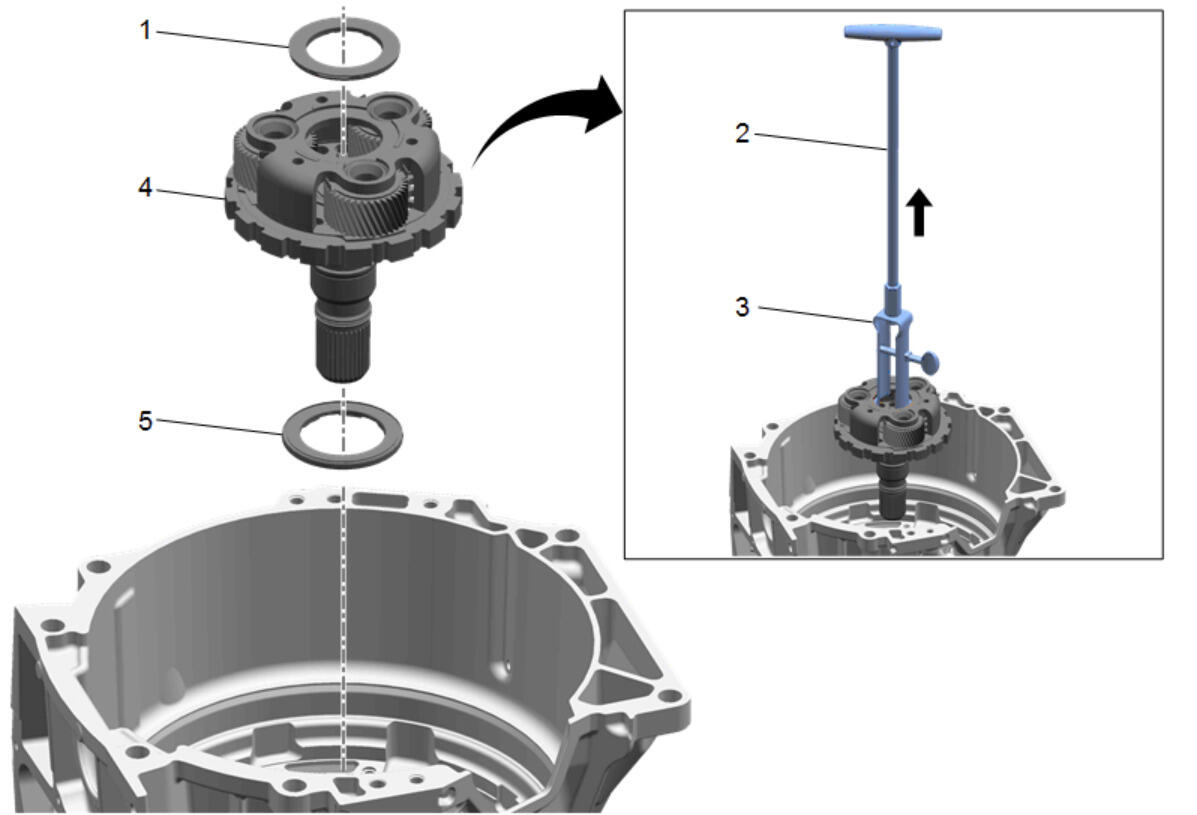

Output Carrier Thrust Bearing Assembly (1) - Remove
Install DT-50921 Output Carrier Lifter (2) and J-26941 Bushing and Bearing Remover (3) to the Output Carrier Assembly (4).
Output Carrier Assembly (4) - Remove
Output Carrier Thrust Bearing Assembly (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

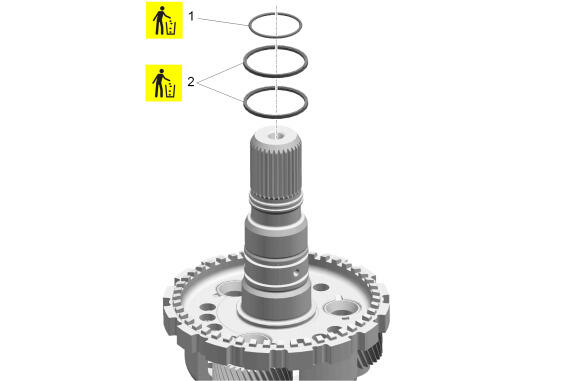

Output Shaft Seal (1) - Remove and DISCARD
Output Shaft Seal (2) - Remove and DISCARD [2x]
