Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

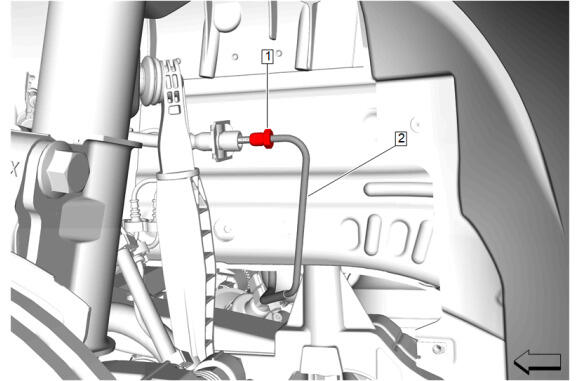

Maneuver the front brake pipe (2) into the vehicle.
Remove the cap from the front brake pipe outlet.
Remove the plug from the front brake hose inlet.

CAUTION:

Refer to Fastener Caution .

Front Brake Pipe Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

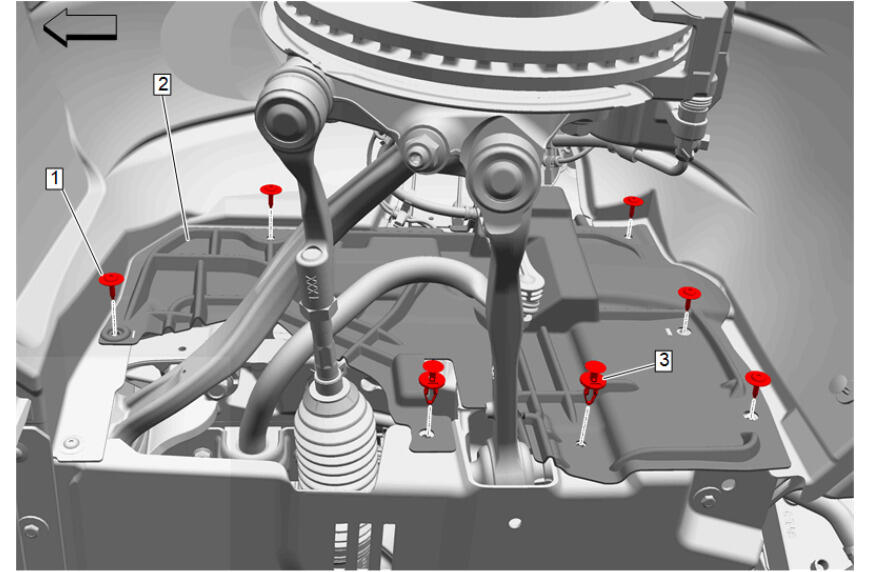

Engine Front Splash Shield (2) - Install
Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Fastener Specifications

NOTE:

Quantity of fasteners may vary based on option content.

Engine Front Splash Shield Retainer (3) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

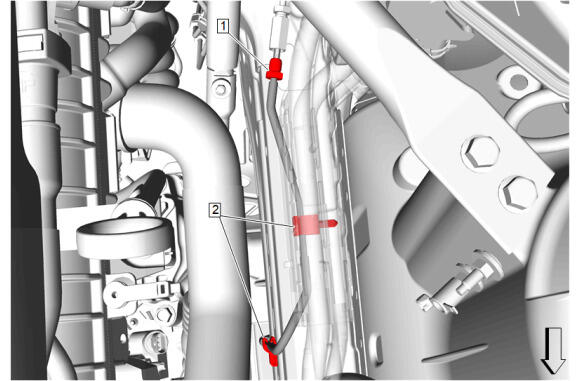

Remove the cap from the front brake pipe inlet.
Remove the plug from the brake pipe union outlet.
Secure the front brake pipe to the 2 retainers (2).
Front Brake Pipe Nut (1) - Install and tighten - Fastener Specifications
Install the air conditioning refrigerant heat exchanger in to the engine compartment.
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Hose Seal (2) - Install NEW
Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

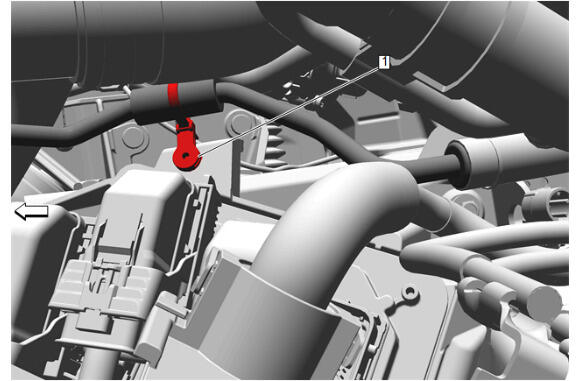

Retainer (1) @ Engine Control Module Bracket - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor and Condenser Hose Seal (2) - Install NEW
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Tube Clip (2) - Install
Air Conditioning Condenser Hose Nut (1) @ Air Conditioning Condenser - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator Tube Clip Bracket Bolt (4) - Install and tighten - Fastener Specifications
Air Conditioning Evaporator Thermal Expansion Valve Seal (3) - Install NEW
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Refrigerant Heat Exchanger - Install
Air Conditioning Compressor Hose Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

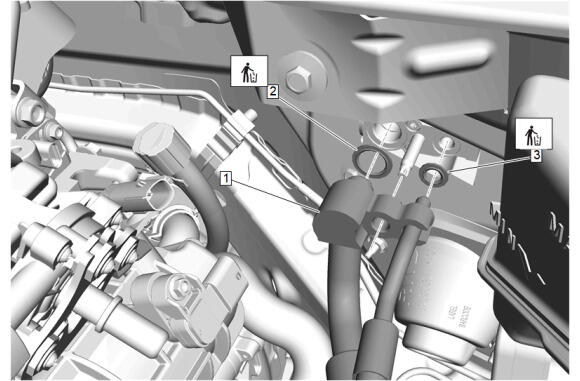

Air Conditioning Evaporator Inlet Tube Seal (3) - Install NEW
Air Conditioning Evaporator Outlet Tube Seal (2) - Install NEW
Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Evaporator Thermal Expansion Valve - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

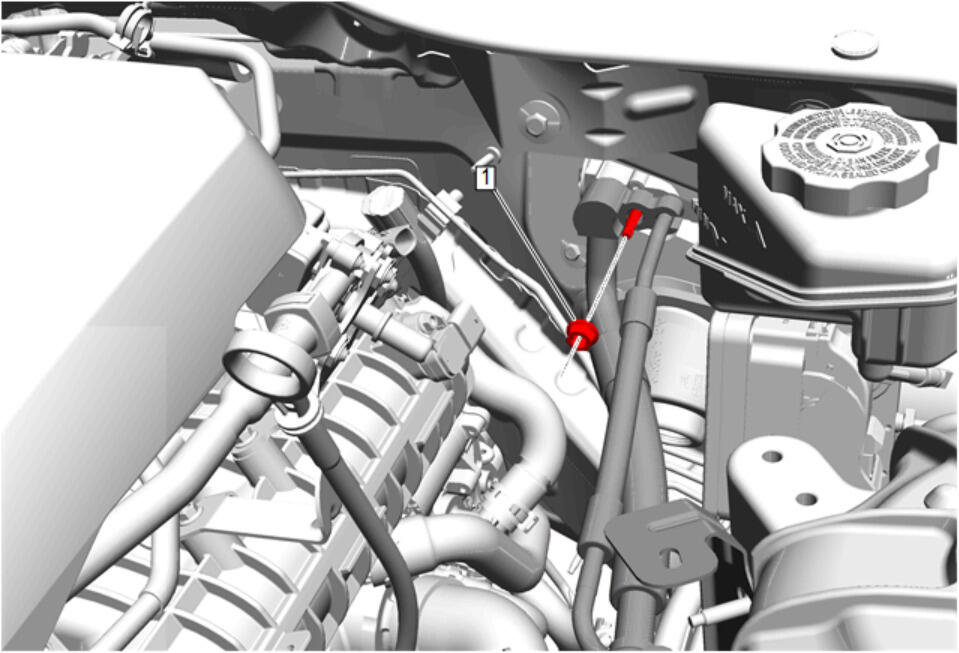

Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) @ Air Conditioning Evaporator Thermal Expansion Valve - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

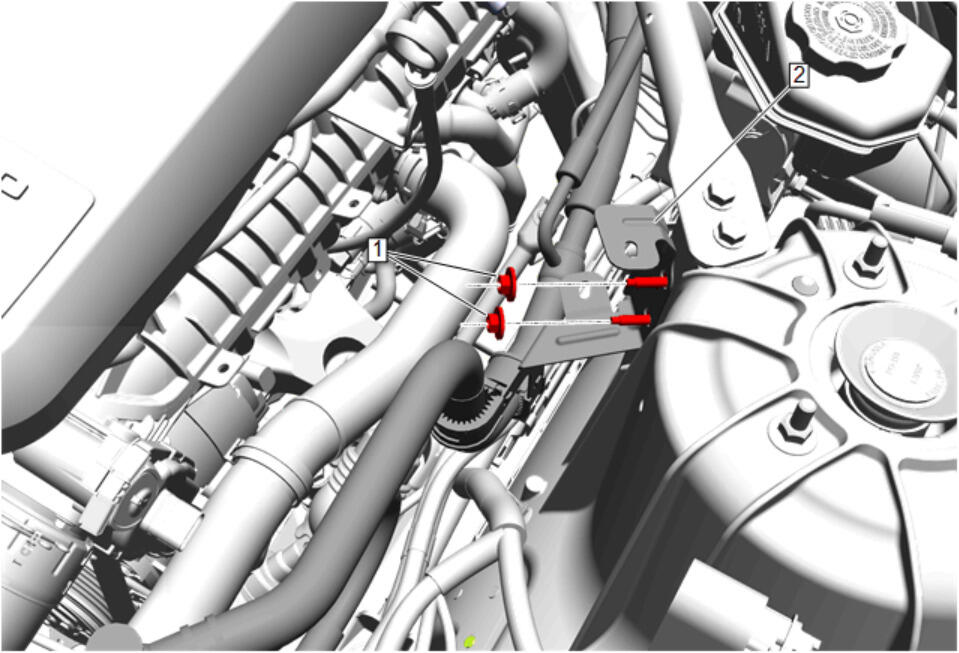

Air Conditioning Refrigerant Heat Exchanger (2) - Install
Air Conditioning Evaporator Hose Clip Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

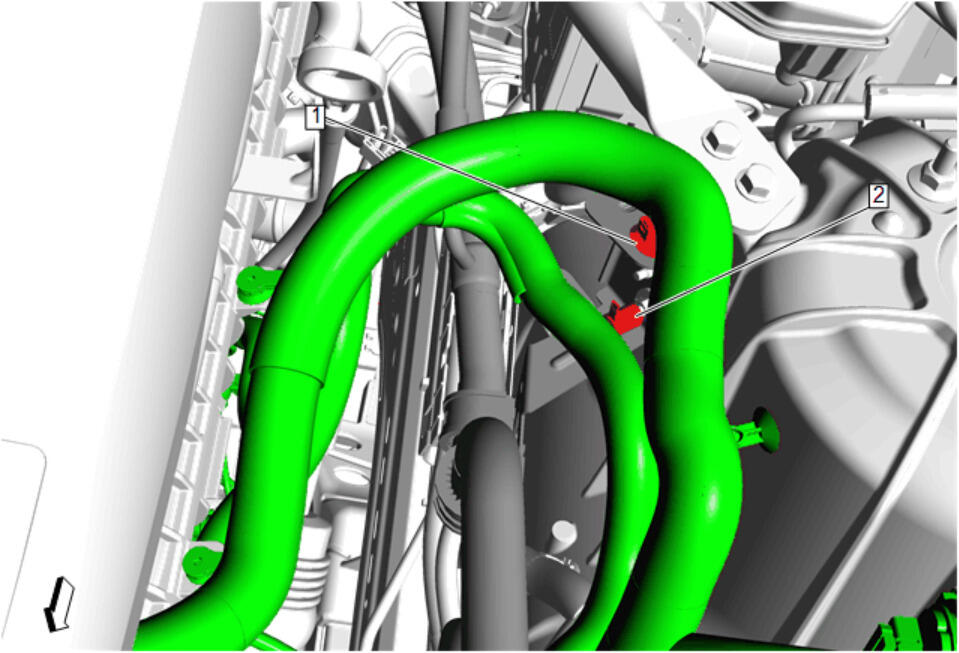

Fasten the auxiliary generator battery jumper cable (2) onto the lower air conditioning refrigerant heat exchanger bracket stud.
Fasten the engine harness (1) onto the air conditioning refrigerant heat exchanger bracket.
Recharge the refrigerant. Refrigerant Recovery and Recharging
Inspect for refrigerant leaks.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Bleed the brake system. Hydraulic Brake System Bleeding (JE5) , or Hydraulic Brake System Bleeding (J55)
Check for brake system leaks.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
