Installation Procedure

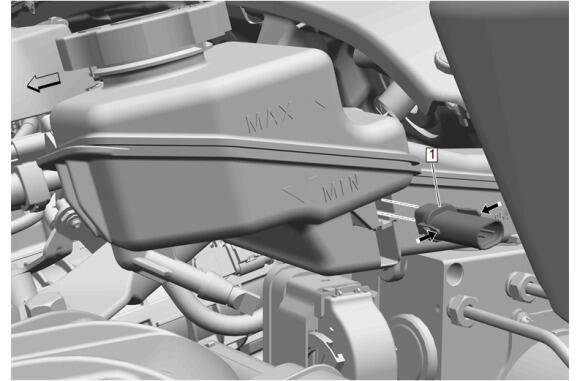

  1. GM5491703Courtesy of GENERAL MOTORS COMPANY

    Brake Fluid Level Sensor (1) - Install

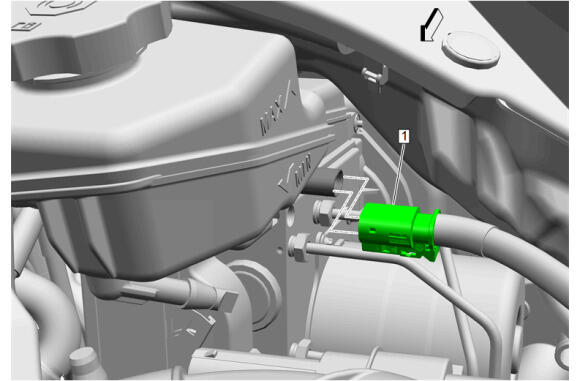

  2. GM5491702Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Brake Fluid Level Sensor - Connect
