Removal Procedure

  1. GM5539714Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Check Link Bolt (1) - Remove

  2. GM5311758Courtesy of GENERAL MOTORS COMPANY

    Mark the location of the front side door hinges with a grease pencil to aid in alignment during installation.

  3. Support the door before removing the hinge fastener.
  4. Front Side Door Hinge Bolt - Door Side (1) - Remove [4x]
  5. With the aid of an assistant, remove the front side door (2) to gain access to the front side door auxiliary weatherstrip.

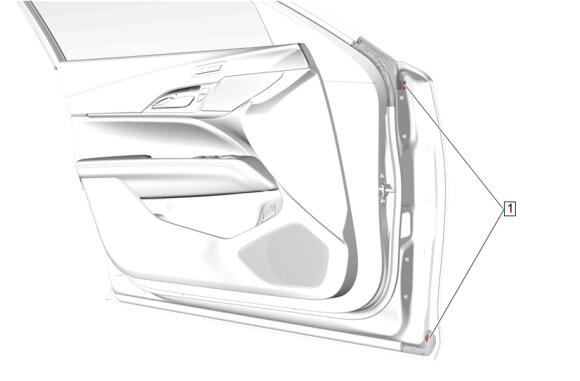

  6. GM5491739Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Weatherstrip - Release the retainer (1)

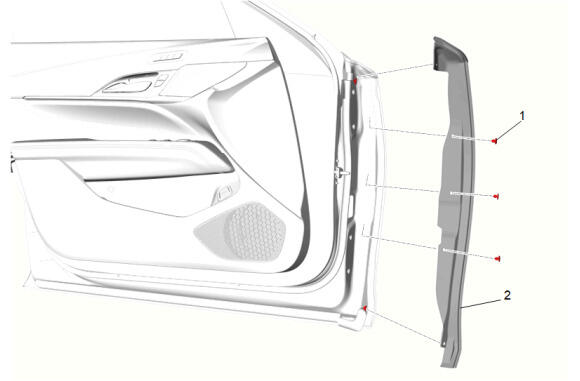

  7. GM5491715Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Front Auxiliary Weatherstrip Retainer (1) - Remove [3x]

  8. Front Side Door Front Auxiliary Weatherstrip (2) - Remove
