Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

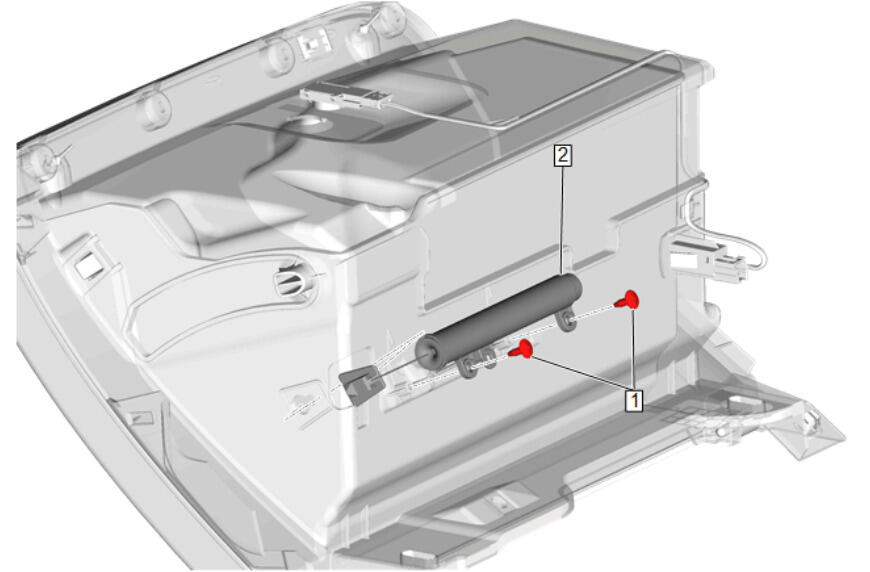

Instrument Panel Compartment Door Dampener (2) - Install

CAUTION:

Instrument Panel Compartment Door Dampener Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the instrument panel compartment door dampener (2) to the instrument panel compartment door.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Instrument Panel Compartment (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Bolt (1) - Install and tighten [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Lower Airbag - Passenger Side (2) - Install
Instrument Panel Lower Airbag Nut (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator (1) - Install
Install the tab into the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Insulator Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

Close and lock the body control module bracket (2) into the instrument panel lower trim panel insulator.
Body Control Module Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover - Right Side (1) - Install
Clear DTCs
Enable the SIR System. SIR Disabling and Enabling .
