Forward Lamp Harness Routing - Left Side of Engine Compartment

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

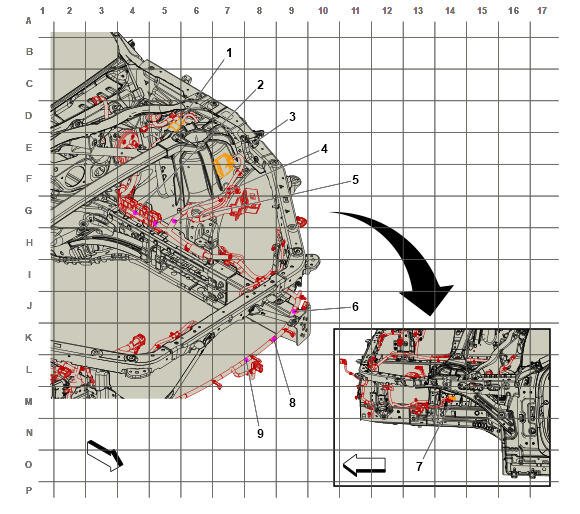

GM5865211Courtesy of GENERAL MOTORS COMPANY
Items
1. X188 Forward Lamp Wiring Harness to Forward Lamp Wiring Harness X188 Forward Lamp Wiring Harness to Forward Lamp Wiring Harness
2. J110 Forward Lamp Wiring Harness
3. X180 Engine Wiring Harness to Forward Lamp Wiring Harness X180 Engine Wiring Harness to Forward Lamp Wiring Harness
4. J158 Forward Lamp Wiring Harness
5. J111 Forward Lamp Wiring Harness
6. J112 Forward Lamp Wiring Harness
7. X242 Forward Lamp Wiring Harness to Left Electronic Suspension Front Suspension Strut Wiring Harness (F55) X242 Forward Lamp Wiring Harness to Left Electronic Suspension Front Suspension Strut Wiring Harness (F55)
8. J113 Forward Lamp Wiring Harness
9. J114 Forward Lamp Wiring Harness
