Body Harness Routing - Left Front of Passenger Compartment

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

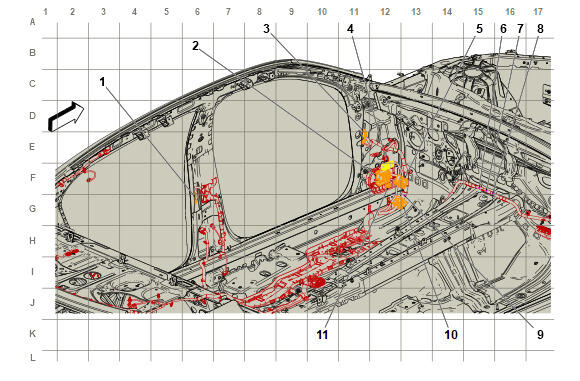

GM5865220Courtesy of GENERAL MOTORS COMPANY
Items
1. X305 Left Rear Side Door Door Wiring Harness to Body Wiring Harness X305 Left Rear Side Door Door Wiring Harness to Body Wiring Harness
2. X207 Instrument Panel Wiring Harness to Body Wiring Harness X207 Instrument Panel Wiring Harness to Body Wiring Harness
3. X303 Front Driver Side Door Door Wiring Harness to Body Wiring Harness X303 Front Driver Side Door Door Wiring Harness to Body Wiring Harness
4. X211 Instrument Panel Wiring Harness to Body Wiring Harness X211 Instrument Panel Wiring Harness to Body Wiring Harness
5. X127 Forward Lamp Wiring Harness to Body Wiring Harness X127 Forward Lamp Wiring Harness to Body Wiring Harness
6. J226 Body Wiring Harness
7. J227 Body Wiring Harness
8. J228 Body Wiring Harness
9. J225 Body Wiring Harness
10. X125 Forward Lamp Wiring Harness to Body Wiring Harness X125 Forward Lamp Wiring Harness to Body Wiring Harness
11. X222 Body Wiring Harness to Instrument Panel Wiring Harness X222 Body Wiring Harness to Instrument Panel Wiring Harness
