G105, G109, G201, and G301

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

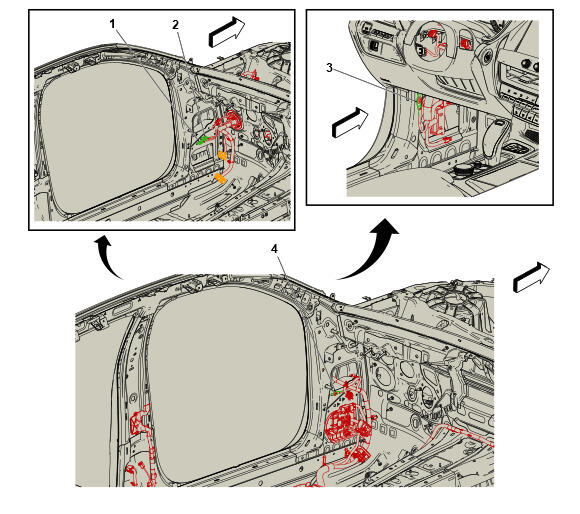

GM5865185Courtesy of GENERAL MOTORS COMPANY
Items
1. G105 Engine Wiring Harness
2. G109 Forward Lamp Wiring Harness
3. G201 Instrument Panel Wiring Harness
4. G301 Instrument Panel Wiring Harness
