Sunroof Sunshade Motor Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

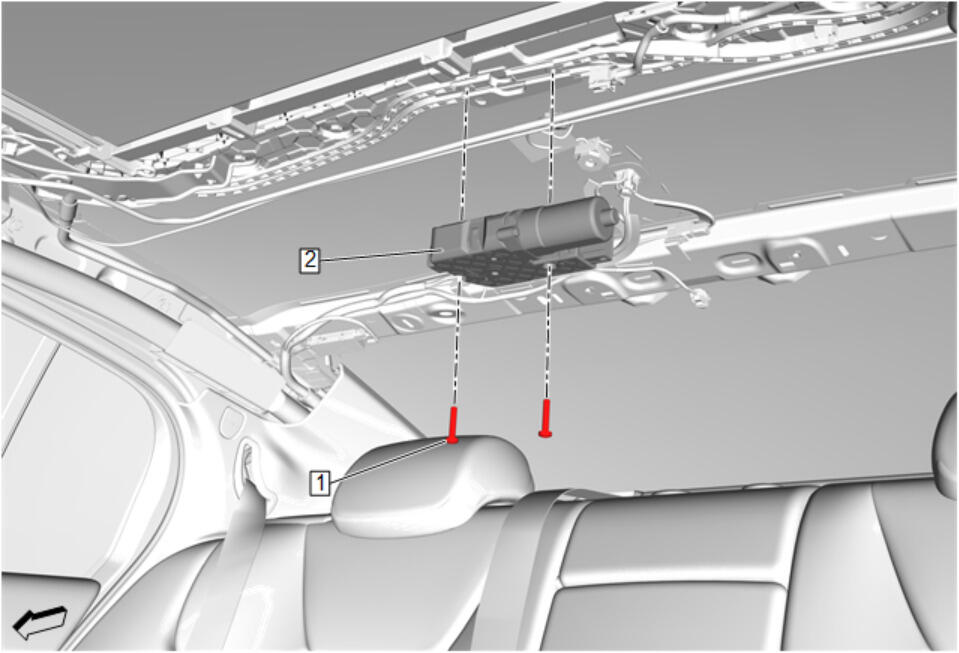

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U)
1	Sunroof Sunshade Motor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Sunroof Sunshade Motor Procedure Disconnect the electrical connector. Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U)

Sunroof Sunshade Motor Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Sunroof Sunshade Motor

Procedure

Disconnect the electrical connector.
Perform the necessary initialization procedure. Sunroof/Sunshade Motor Initialization
