Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
- When reusing valve lifters (1), ensure the lifters to their original locations.
- Only replace the valve lifters (1) and valve lifter guides (2) as required.
- If camshaft replacement is required, the valve lifters (1) must also be replaced.
Lubricate the valve lifters and valve lifter guides with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers
- Install the raised surface of the valve lifter (1) into the notched area of the valve lifter guide (2).
- NOTE:
The notched area of the valve lifter guides (2) align with the locating tab on the engine block.
Install the valve lifter guide (2) and the valve lifters (3) as an assembly.
- Valve Lifter Guide Bolt (1) - Install and tighten to 12 N.m (106 lb in)

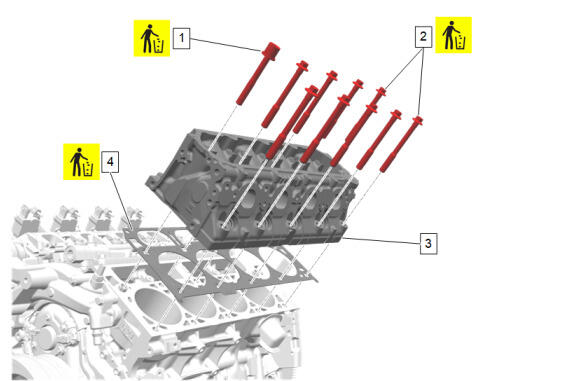

Cylinder Head-Left Side (3) - Install - Cylinder Head Replacement - Left Side
CAUTION:
Refer to Fastener Caution .
