Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
All gasket surfaces should be free of oil or other foreign material during assembly.

Valve Lifter Oil Manifold Gasket (3) - Install NEW
Valve Lifter Oil Manifold (2) - Install
Valve Lifter Oil Manifold Bolt (1) - Install and hand tighten [9x]

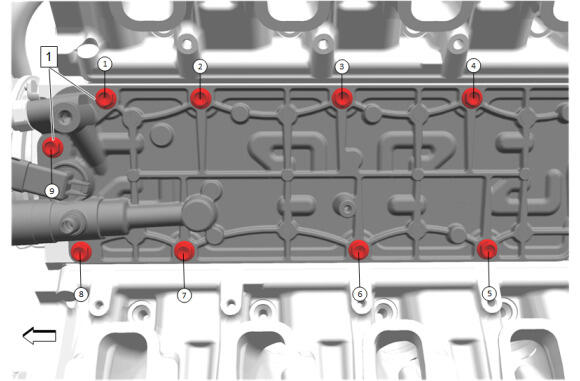

Fig 1: Identifying Valve Lifter Oil Manifold Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Valve Lifter Oil Manifold Bolt (1) - Tighten in sequence [9x]
1. First Pass: 15 N.m (11 lb ft)
2. Final Pass: 30 N.m (22 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Valve Rocker Arm Oil Control Valve Extension Harness (1) - Connect
Fuel Injection Fuel Rail Assembly-Bank 2 - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 2
Fuel Injection Fuel Rail Assembly-Bank 1 - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 1
Fuel Pump - Install - Fuel Pump Replacement
