Engine Support Fixture

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

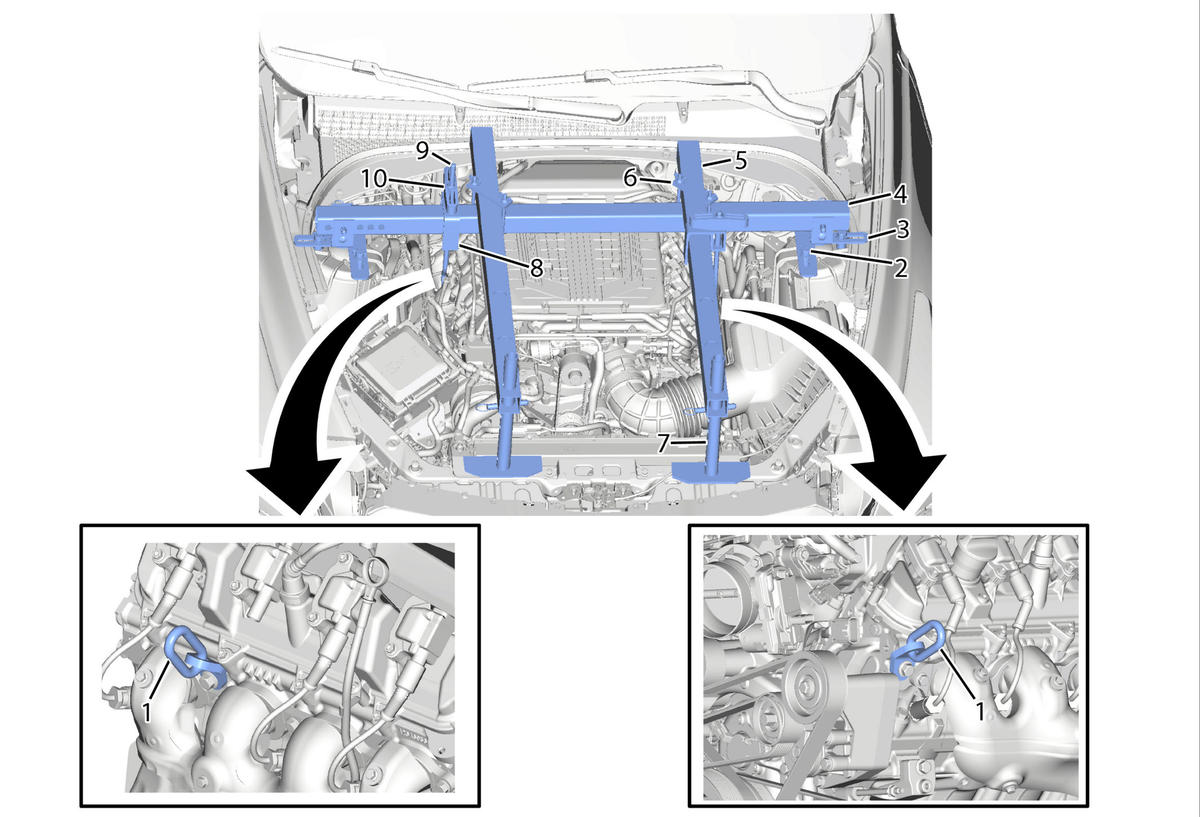

Fig 1: Identifying Engine Support Fixture Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Compartment Front Sight Shield Replacement Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket) , or Front End Sheet Metal Cross Brace Replacement (Plenum with Blackwing) Valve Rocker Arm Cover Insulator Replacement - Left Side Valve Rocker Arm Cover Insulator Replacement - Right Side Radiator Surge Tank Replacement (LT4) Special Tools EN-36857 Engine Lift Bracket EN-46114 Engine Lift Bracket J-28467-5A Engine Support Beam Adapters J-28467-33 Strut Tower To Support Beam Adapters J-28467-B Main Support Beam J-36462-1A Radiator Tube Shelf Assembly EN-28467-1A Cross Bracket EN-28467-4A Front Support Assembly J-28467-6A Bracket Assembly EN-28467-8A Hook Assembly EN-28467-34 Lift Hook Wing Nut and Washer EN-52059 Engine Support Fixture Adapter Bolt - M10 For equivalent regional tools. Refer to Special Tools
1	EN-36857 Engine Lift Bracket (Qty: 2) Procedure CAUTION: Refer to Fastener Caution . Use EN-52059 Engine Support Fixture Adapter Bolt - M10 to install a EN-36857 bracket to the right and left cylinder head in the location shown. Tighten the bolt to 65 N.m (48 lb ft).
2	J-28467-33 Strut Tower To Support Beam Adapters (Qty: 6) Procedure Thread the strut tower adapters to the strut towers.
3	J-28467-5A Engine Support Beam Adapters (Qty: 2) Procedure Place the engine support beam adapters on the strut towers and secure using wing nuts.
4	J-28467-B Main Support Beam Procedure Install main support beam through engine support beam adapters and pin in place.
5	J-36462-1A Radiator Tube Shelf Assembly (Qty: 2) Procedure Place radiator shelf tubes on top of main support beam.
6	EN-28467-1A Cross Bracket (Qty: 2) Procedure Loosely install cross bracket to retain radiator shelf tube to main support beam. Tighten cross bracket after front support assembly is in place.
7	EN-28467-4A Front Support Assembly (Qty: 2) Procedure Place front support assembly through radiator tube shelf and pin at proper height.
8	J-28467-6A Bracket Assembly (Qty: 2)
9	EN-28467-8A Hook Assembly (Qty: 2)
10	EN-28467-34 Lift Hook Wing Nut and Washer (Qty: 2)
