Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill)
- Raise and support the vehicle. Lifting and Jacking the Vehicle

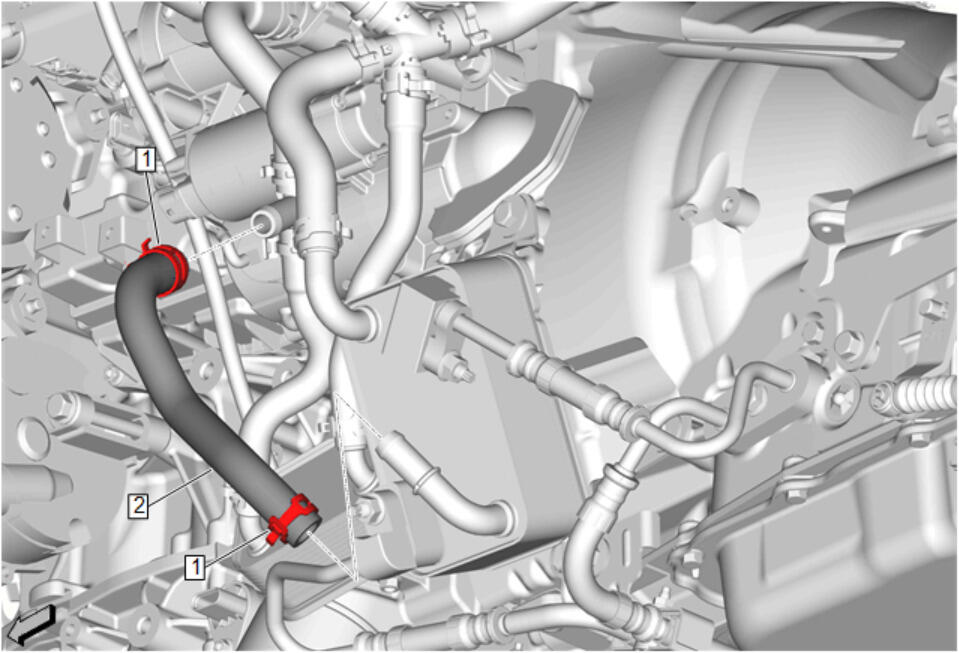

Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) - Remove
