Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5313411Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Water Deflector (1) - Remove - Rear Side Door Water Deflector Replacement

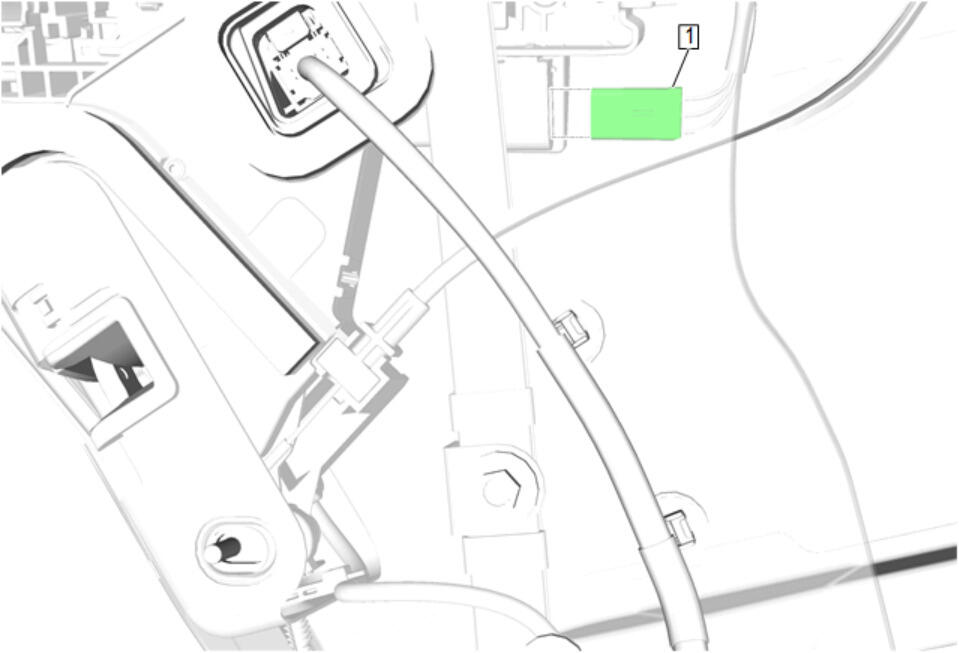

  2. GM5323224Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

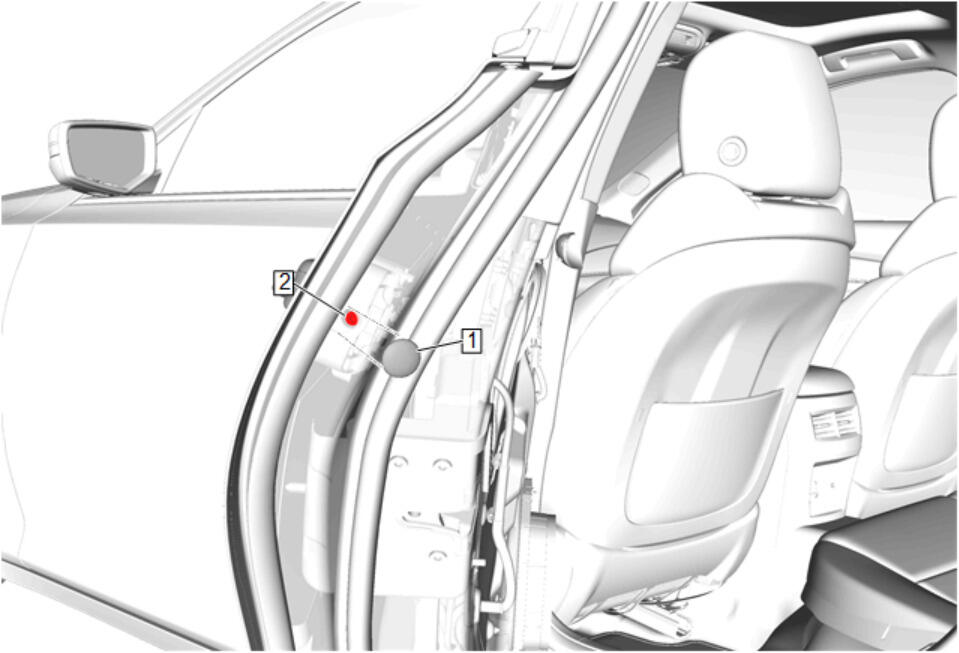

  3. GM5323227Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Inner Panel Access Hole Plug (1) - Remove

    4. NOTE:
    • USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
    • Around 10 to 12 rotations is enough to allow the front side door outside handle to be removed.
    • Support the rear side door outside handle while loosening the rear side door outside handle bracket.
  4. Rear Side Door Outside Handle Bracket Screw (2) - Loosen

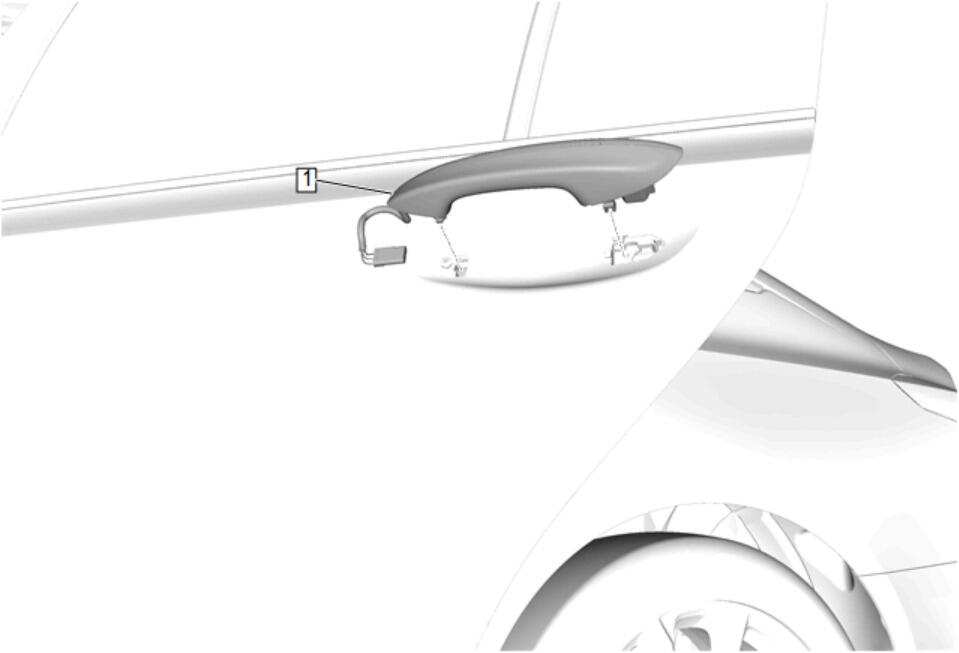

  5. GM5323230Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Outside Handle (1) - Remove

  6. Transfer components as necessary.
