Rear Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

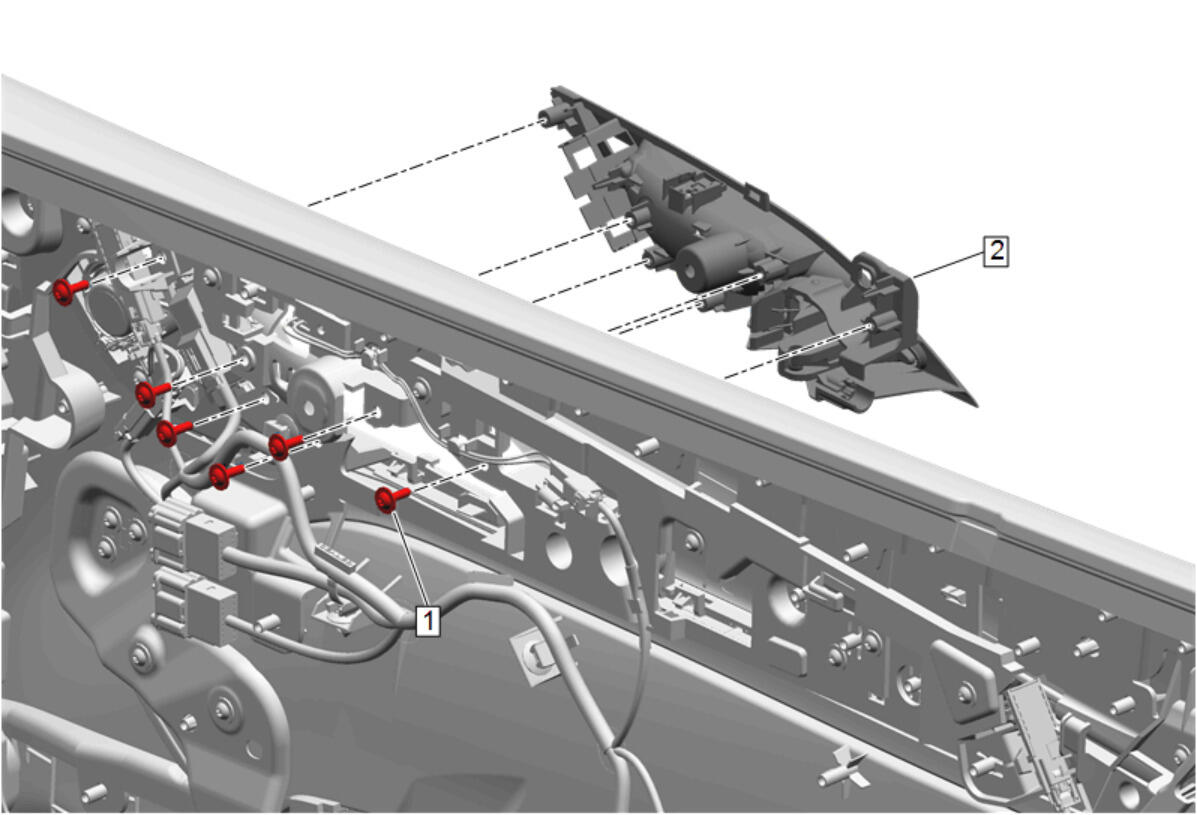

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Panel Applique Replacement
1	Rear Side Door Trim Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Inside Handle Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Rear Side Door Trim Panel Applique Replacement

Rear Side Door Trim Bolt [6x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Rear Side Door Inside Handle

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
