Rear Side Door Inside Handle Cable Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door latch. Rear Side Door Latch Replacement
1	Rear Side Door Inside Handle Cable Procedure Using the appropriate tool, release the retaining tab from the back side of the rear side door inside handle cable. Remove the cable from the rear side door latch release lever. Ensure the rear side door inside handle cable retaining tab is fully seated before installing the latch.

Callout

Component Name

Preliminary Procedure
Remove the rear side door latch. Rear Side Door Latch Replacement

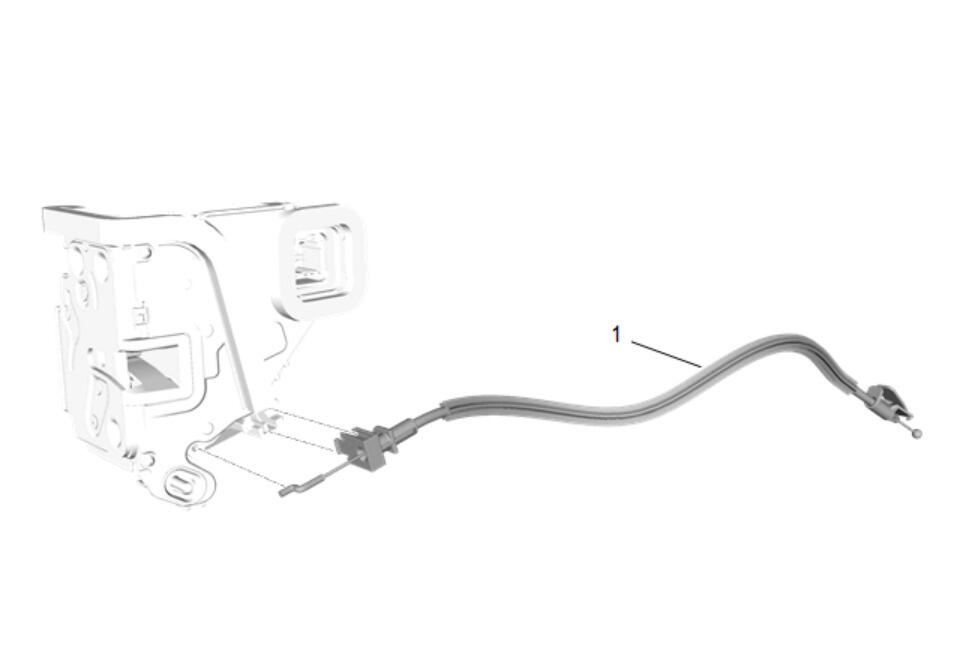

Rear Side Door Inside Handle Cable

Procedure

Using the appropriate tool, release the retaining tab from the back side of the rear side door inside handle cable.
Remove the cable from the rear side door latch release lever.
Ensure the rear side door inside handle cable retaining tab is fully seated before installing the latch.
