Rear Compartment Lid Latch Striker Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

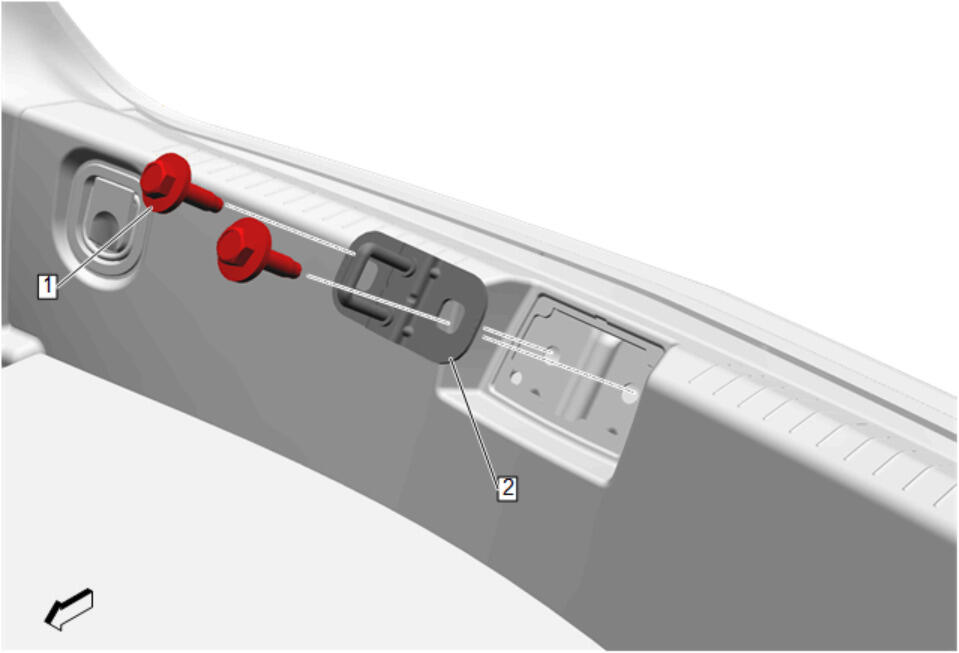

Callout	Component Name
Preliminary Procedures Rear End Trim Finish Panel Opening Cover Replacement Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
1	Rear Compartment Lid Latch Striker Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 28 N.m (21 lb ft)
2	Rear Compartment Lid Latch Striker

Callout

Component Name

Preliminary Procedures

Rear End Trim Finish Panel Opening Cover Replacement
Mark the location of the striker with a grease pencil to ensure proper alignment during installation.

Rear Compartment Lid Latch Striker Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
28 N.m (21 lb ft)

Rear Compartment Lid Latch Striker
