Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Front Side Door Water Deflector (1) - Remove - Front Side Door Water Deflector Replacement - Driver Side
Disconnect the electrical connector. (1)

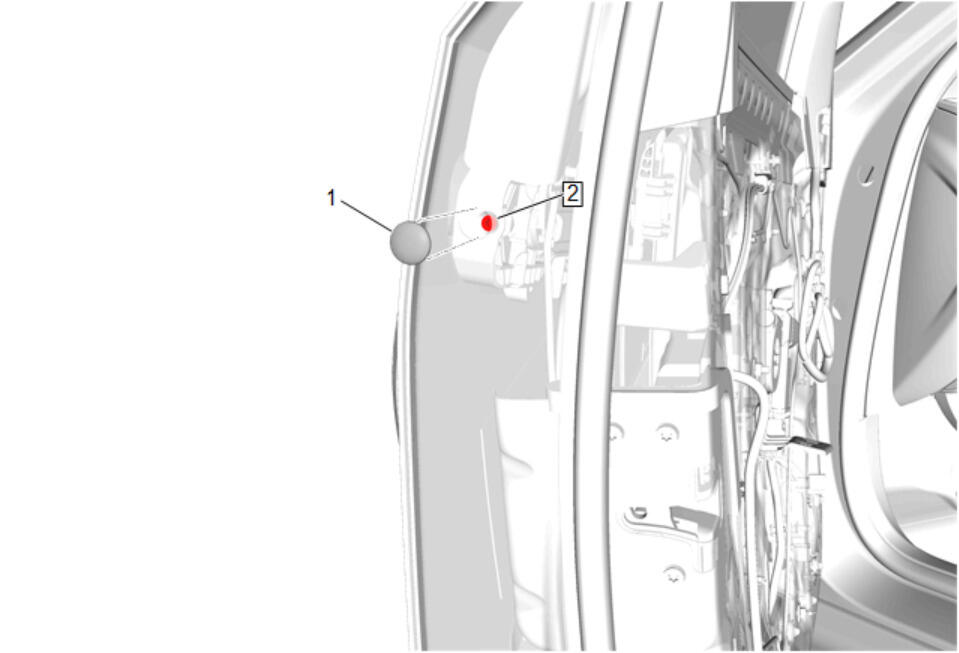

Front Side Door Access Hole Plug (1) - Remove
- USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
- Around 10 to 12 rotations is enough to allow the front side door outside handle to be removed.
- Support the front side door outside handle while loosening the front side door outside handle bracket.
- Front Side Door Outside Handle Bracket Screw (2) - Loosen
Front Side Door Outside Handle (1) - Remove
- Transfer components as necessary.
NOTE:
