Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5318232Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle - Right Side (1) - Remove - Front Side Door Outside Handle Replacement - Right Side

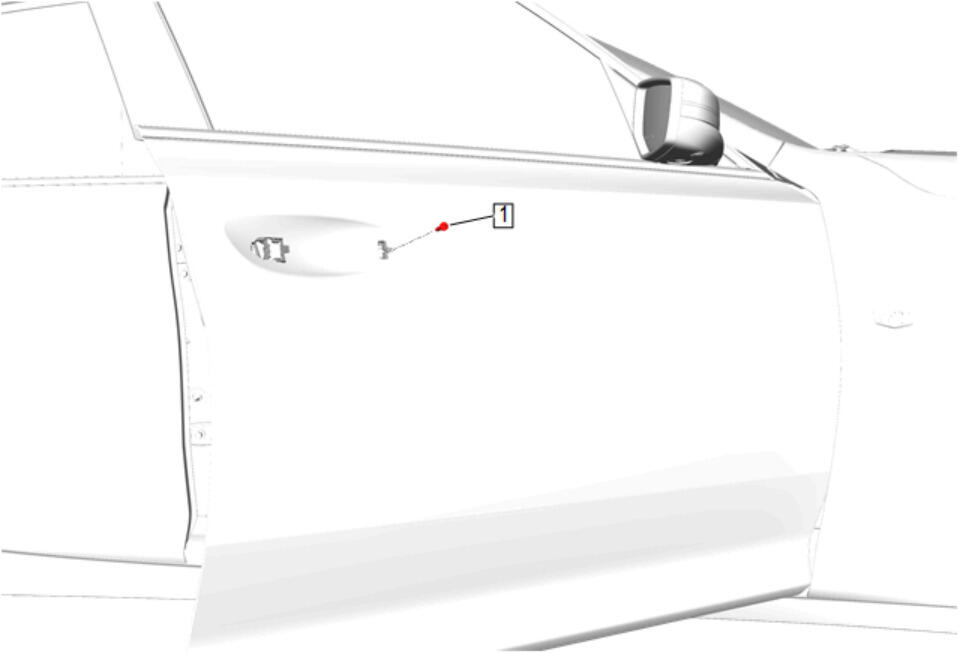

  2. GM5318264Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle Bracket Screw (1) - Remove

  3. GM5318266Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle Bracket (1) - Remove
