Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

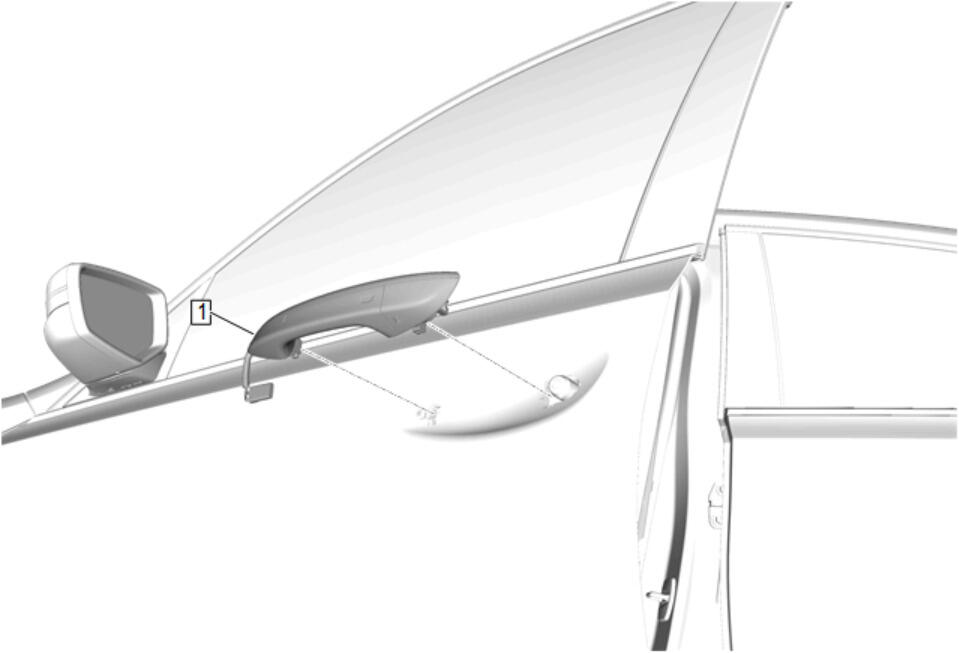

  1. GM5310396Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle - Left Side (1) - Remove - Front Side Door Outside Handle Replacement - Left Side (Without NWM) , or Front Side Door Outside Handle Replacement - Left Side (With NWM)

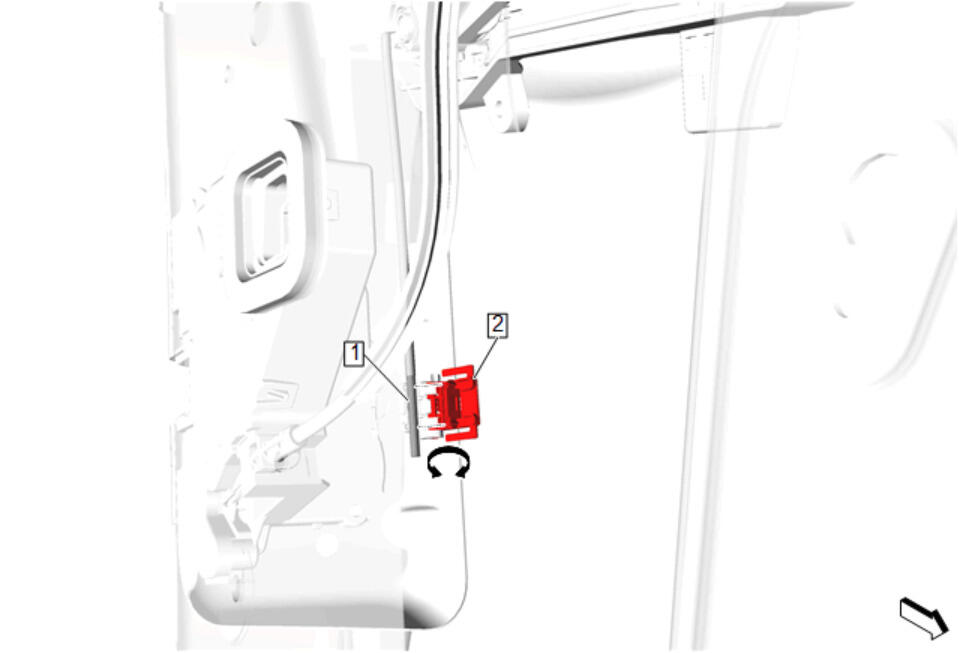

  2. GM5315343Courtesy of GENERAL MOTORS COMPANY

    Using a suitable tool, release the retaining tab on the front side door latch clip (2).

  3. Open the front side door latch clip (2) and remove the front side door lock cylinder rod (1) from the clip.

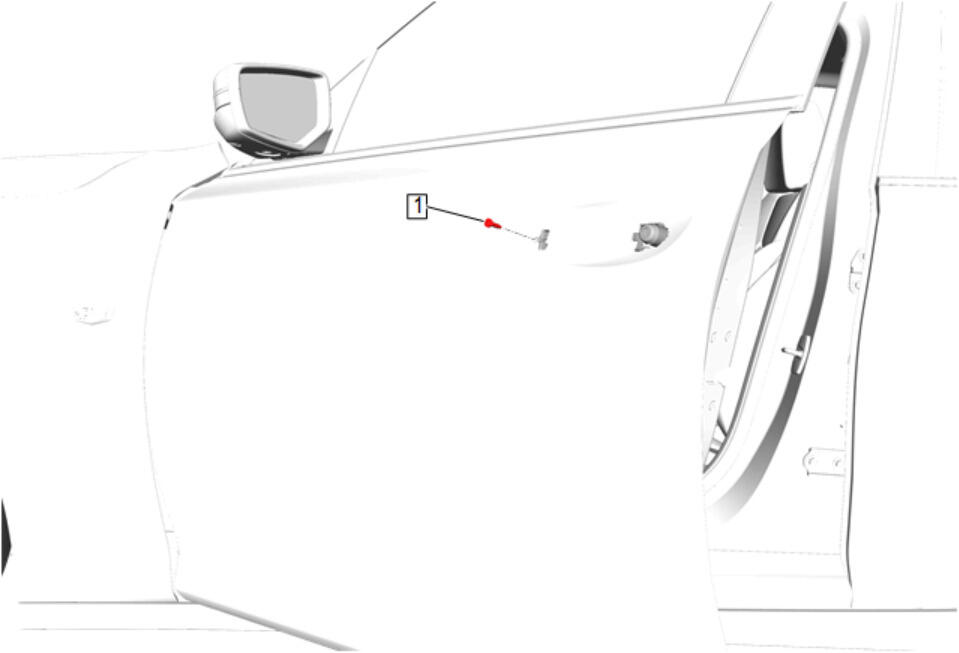

  4. GM5315351Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle Bracket Screw (1) - Remove

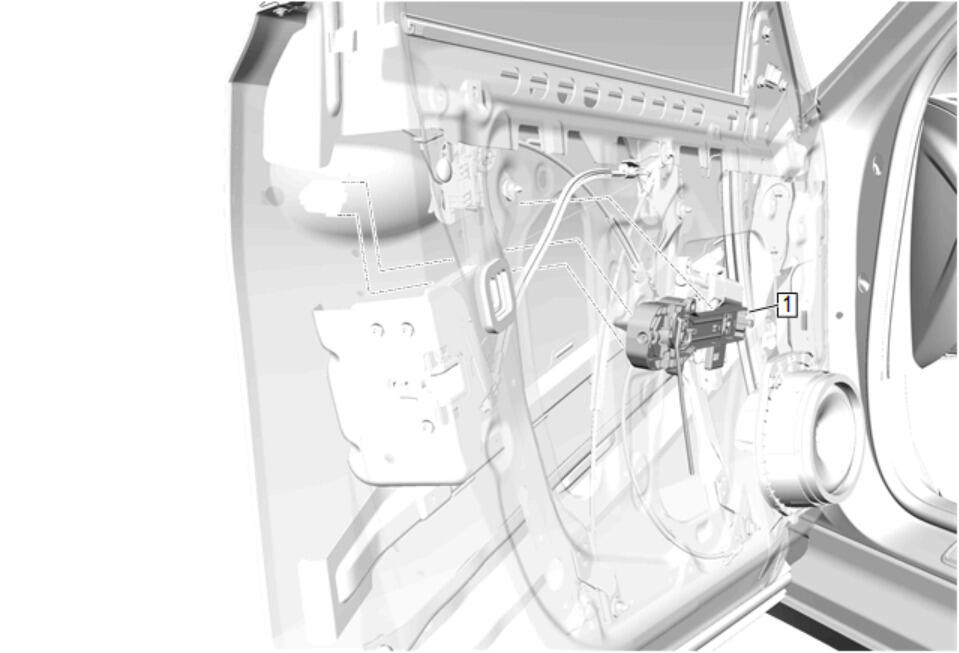

  5. GM5315352Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Outside Handle Bracket (1) - Remove

  6. Transfer components as necessary.
