Front Side Door Inside Handle Cable Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the appropriate front side door latch: Front Side Door Latch Replacement - Left Side (With NWM) , or Front Side Door Latch Replacement - Left Side (Without NWM) Front Side Door Latch Replacement - Right Side

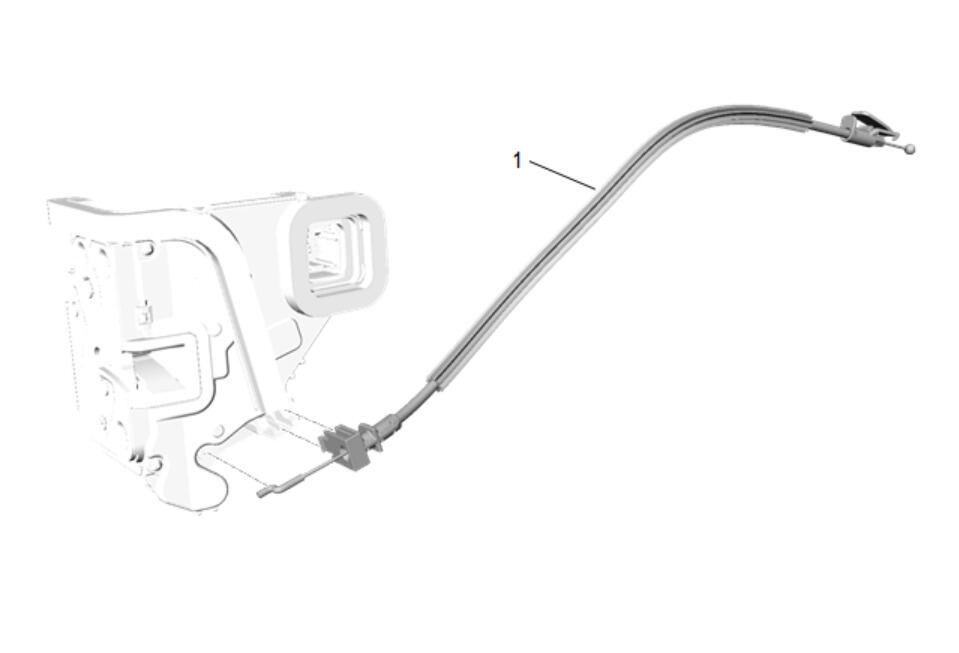

1	Front Side Door Inside Handle Cable Procedure Using the appropriate tool, release the retaining tab from the back side of the front side door inside handle cable. Remove the cable from the front side door latch release lever. Ensure the front side door inside handle cable retaining tab is fully seated before installing the latch.

Callout

Component Name

Preliminary Procedure
Remove the appropriate front side door latch:

Front Side Door Latch Replacement - Left Side (With NWM) , or Front Side Door Latch Replacement - Left Side (Without NWM)
Front Side Door Latch Replacement - Right Side

Front Side Door Inside Handle Cable

Procedure

Using the appropriate tool, release the retaining tab from the back side of the front side door inside handle cable.
Remove the cable from the front side door latch release lever.
Ensure the front side door inside handle cable retaining tab is fully seated before installing the latch.
