Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Place the window in the full up position and tape in place.
Courtesy of GENERAL MOTORS COMPANY

Remove the appropriate front side door water deflector:
- Front Side Door Water Deflector Replacement - Driver Side
- Front Side Door Water Deflector Replacement - Passenger Side
Courtesy of GENERAL MOTORS COMPANY

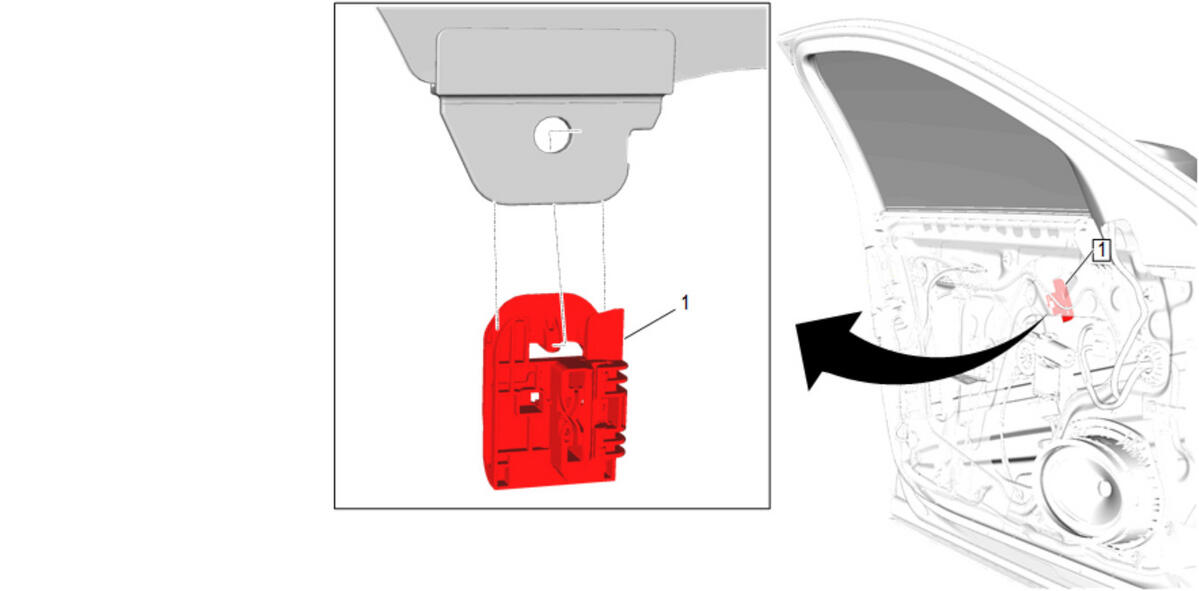

Front Side Door Window Regulator Sash Retainer (1) - Release [2x]
Place the window regulator in the full down position.
Courtesy of GENERAL MOTORS COMPANY

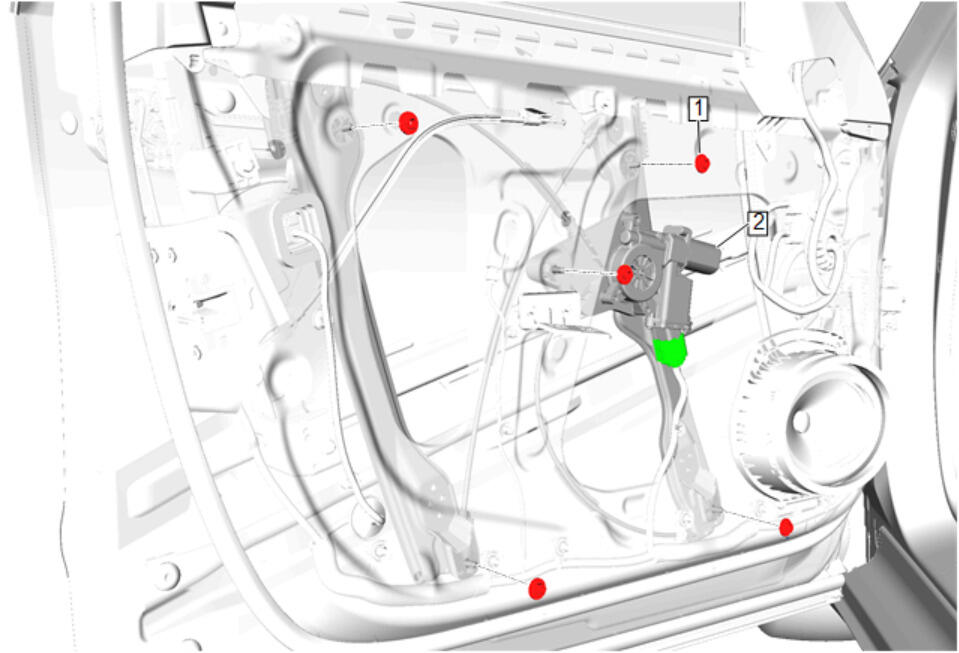

Disconnect the electrical connector.
Front Side Door Window Regulator Nut (1) - Remove [5x]
Front Side Door Window Regulator (2) - Remove
Transfer components as necessary.
