Rear Body Structure Stop Lamp Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

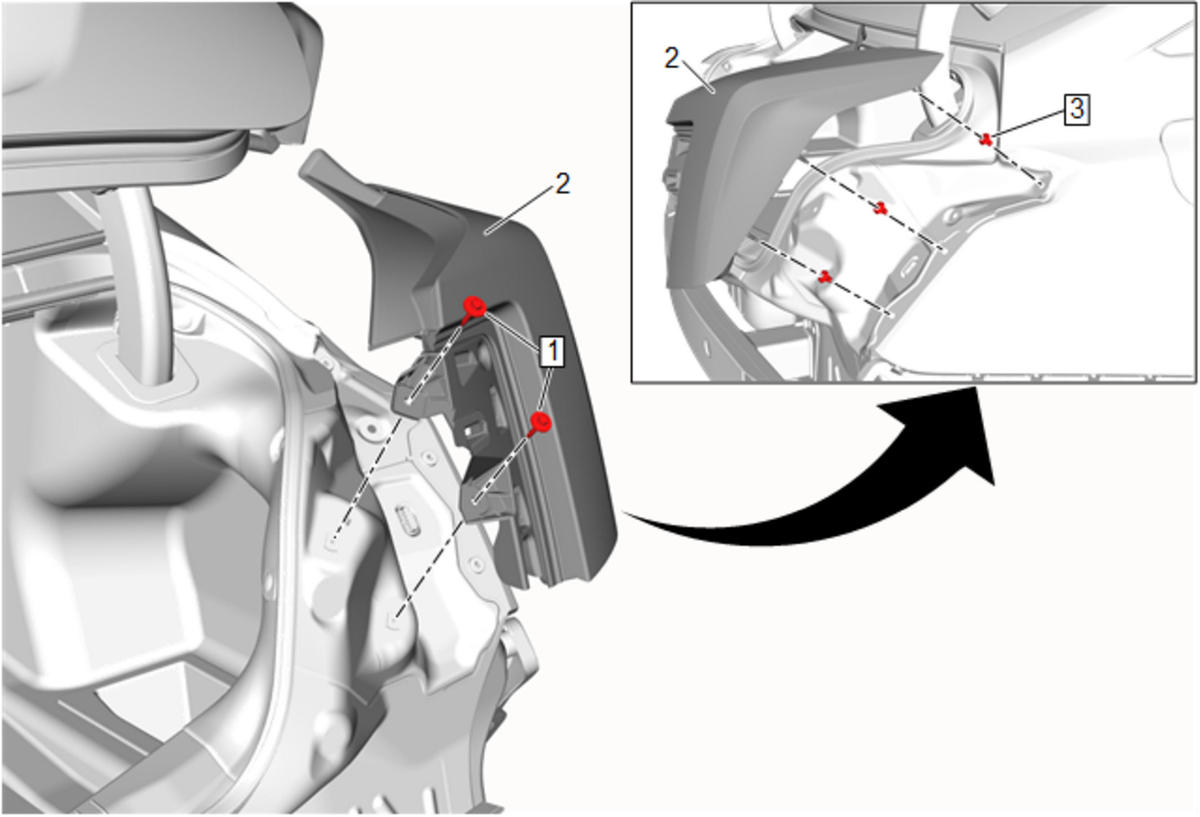

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)
1	Rear Body Structure Stop Lamp Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Body Structure Stop Lamp Procedure Disconnect the electrical connector. Transfer components as necessary. When installing, ensure to align the rear body structure stop lamp mount pins to the lamp retainers on the rear body structure.
3	Rear Body Structure Stop Lamp Retainer [3x] Procedure NOTE: Install NEW rear body structure lamp retainers. Remove and discard the old rear body structure lamp retainers.
