Rear Side Door Window Garnish Molding Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

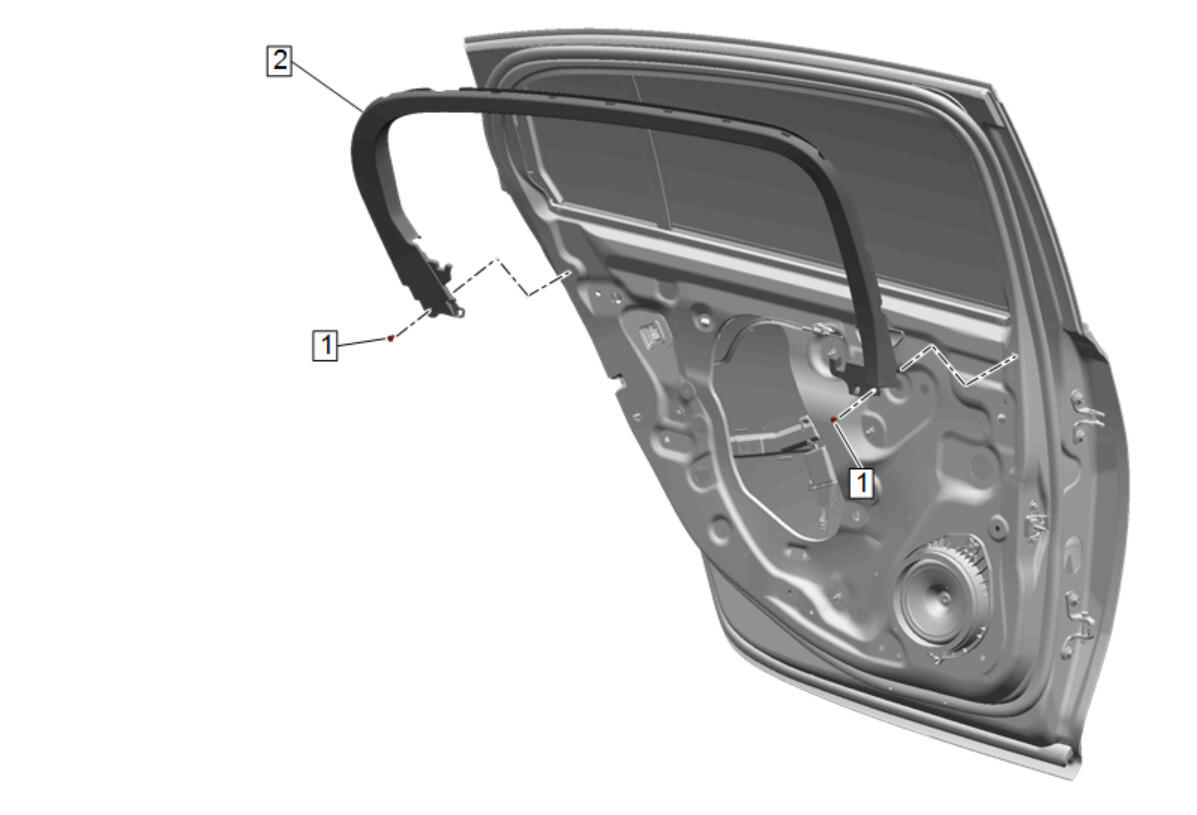

Callout	Component Name
Preliminary Procedure Rear Side Door Trim Replacement
1	Rear Side Door Window Garnish Molding Retainer [2x] Procedure Use a flat-bladed plastic tool to remove the push-in retainers.
2	Rear Side Door Window Garnish Molding Procedure Use a plastic flat-bladed tool to disengage the integral clip. Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.

Callout

Component Name

Preliminary Procedure
Rear Side Door Trim Replacement

Rear Side Door Window Garnish Molding Retainer [2x]
Procedure
Use a flat-bladed plastic tool to remove the push-in retainers.

Rear Side Door Window Garnish Molding

Procedure

Use a plastic flat-bladed tool to disengage the integral clip.
Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.
