Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

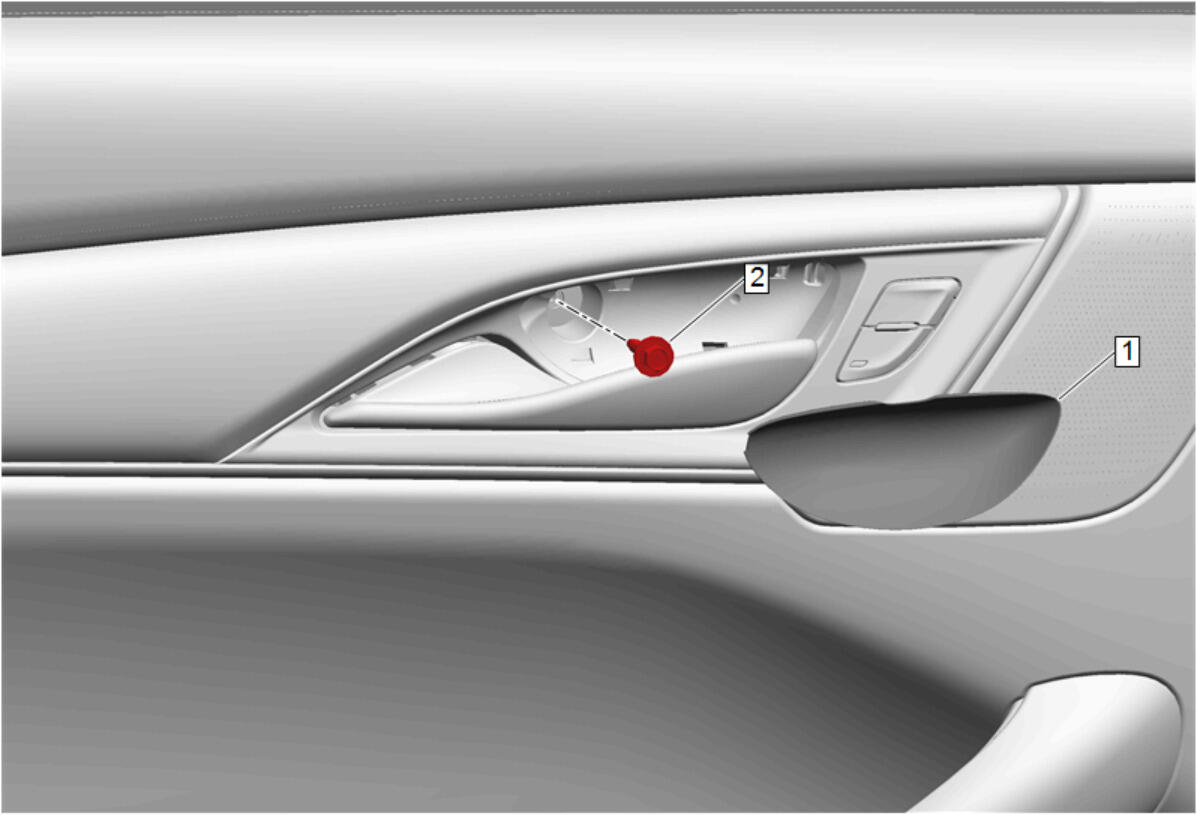

Rear Side Door Inside Handle Bolt Cap (1) - Remove
- Rear Side Door Inside Handle Bolt (2) - Remove

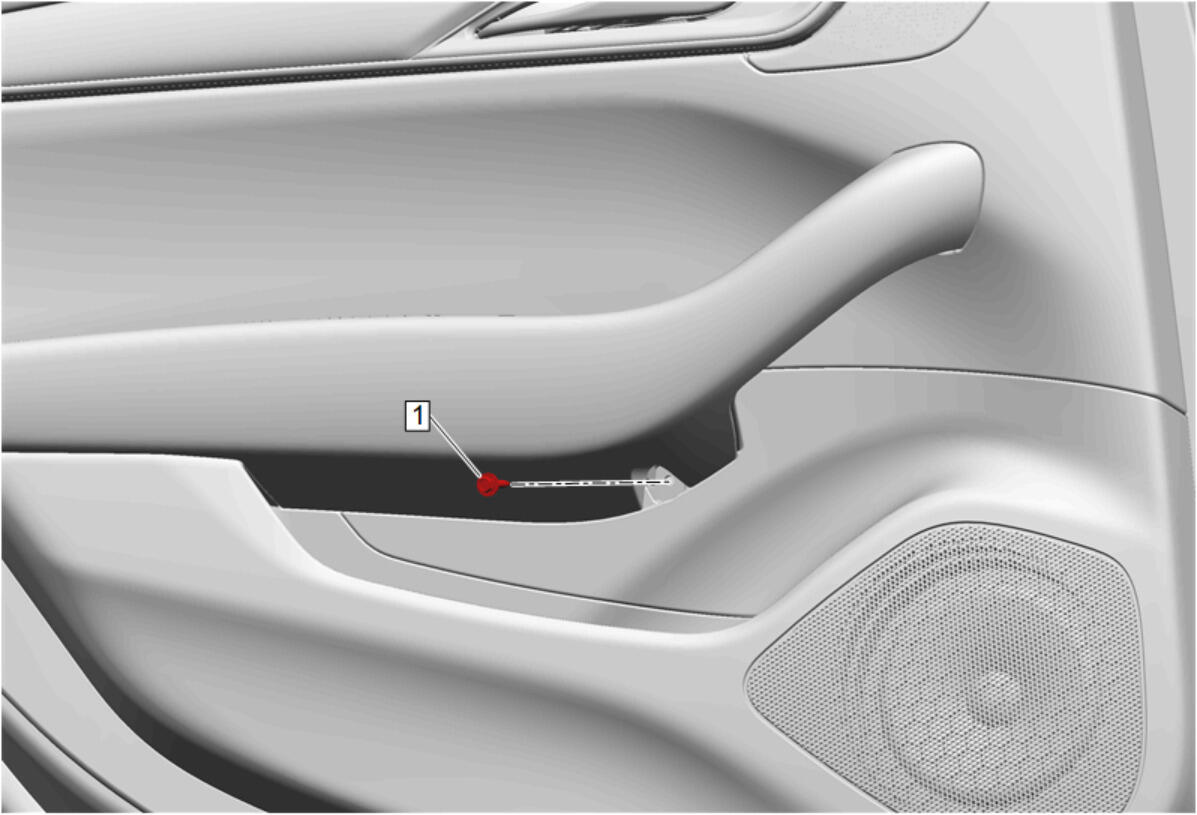

Rear Side Door Pull Handle Bolt (1) - Remove
- NOTE:
The rear side door trim has an integral rear side door trim belt bracket that hooks over the rear side door window inner sealing strip assembly and the rear side door window garnish molding.

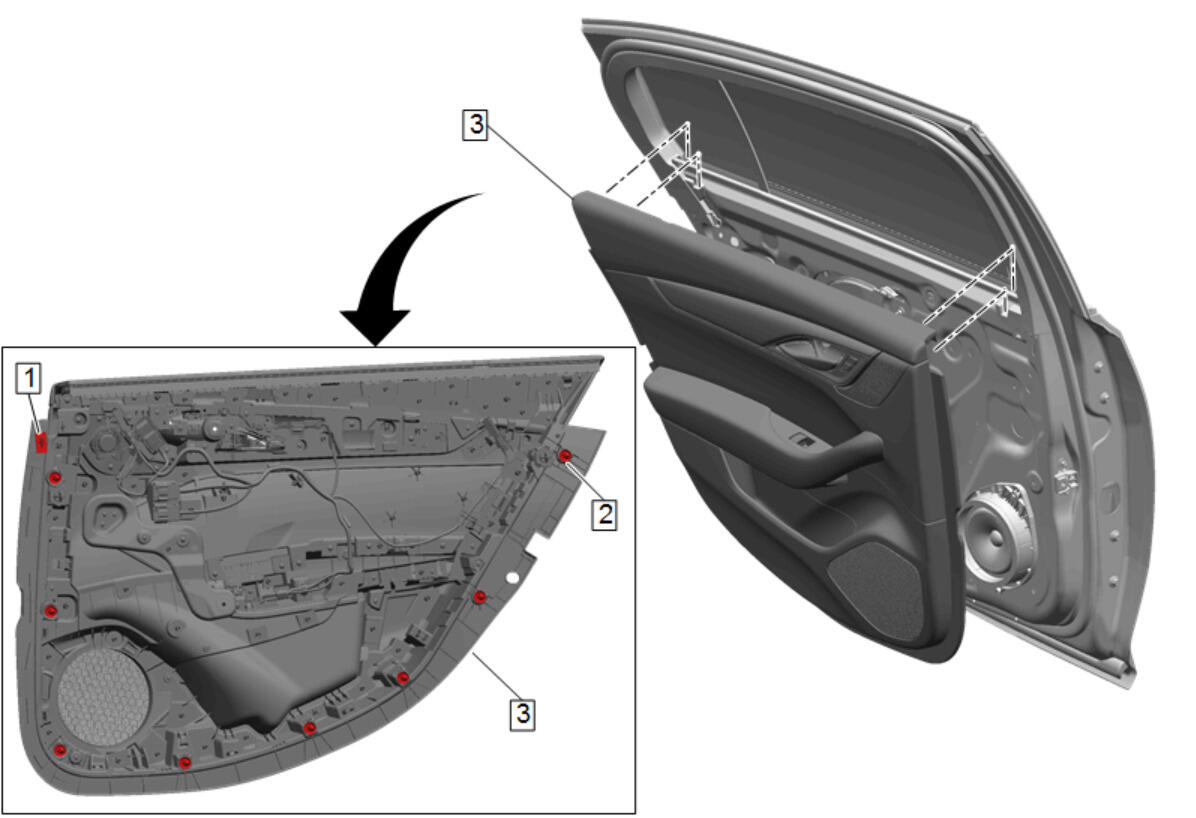

Using an appropriate tool, start from the rear bottom corner and pull the rear side door trim (3) from the sheet metal towards you to disengage perimeter retainers (2).
- When the rear side door trim (3) is sufficiently loosened, place an appropriate tool at the rear portion of the door trim to disengage the remaining retainers (2) and clip (1).
- Unhook the rear side door trim (3) from the belt line, pulling the door trim upwards using both hands.
- Disconnect the door lock retainer cable from the front side door trim (3) and the inside handle.
- Disconnect the electrical connector.
- Rear Side Door Trim (3) - Remove
- Place the rear side door trim (3) on a clean flat surface.
