Rear Side Door Pull Handle Bracket Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

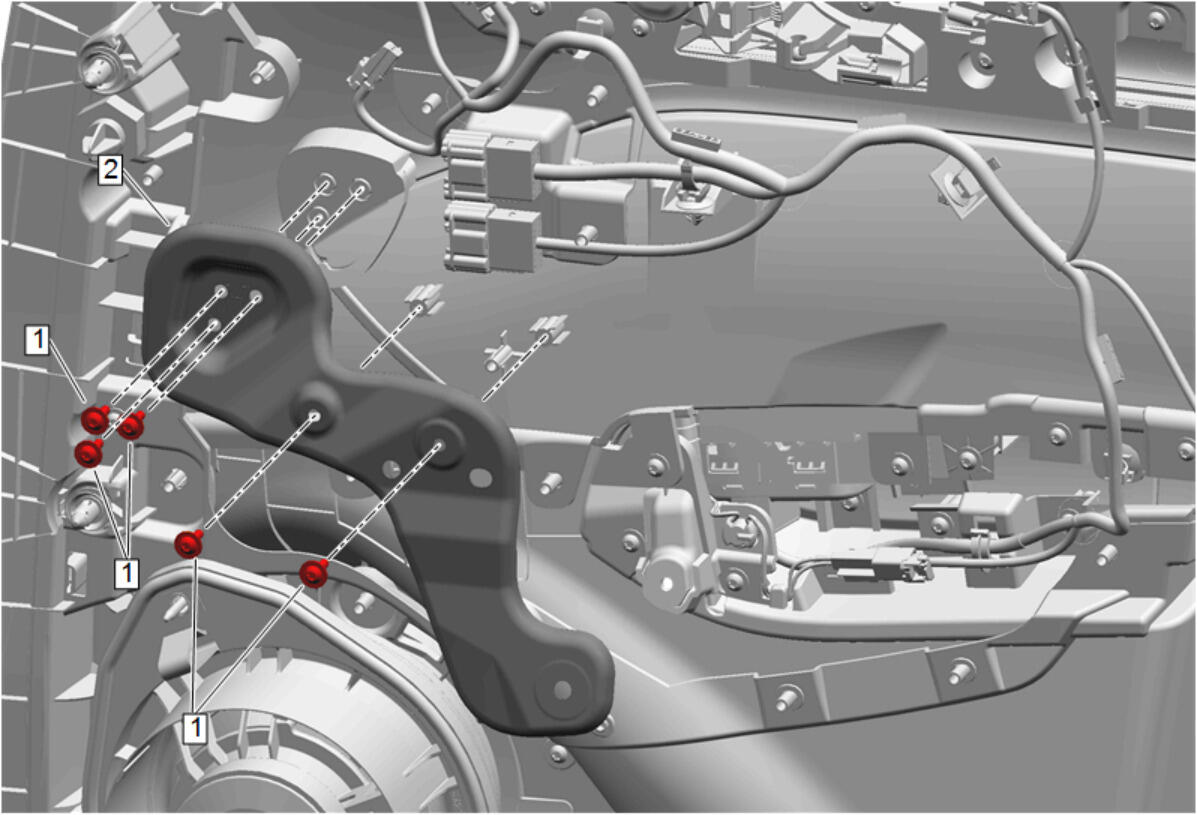

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Side Door Trim Replacement |
|
| 1 | Rear Side Door Trim Bolt [5x]
CAUTION:
Refer to: Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Side Door Pull Handle Bracket Procedure Transfer components as necessary. |
