Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Rear End Trim Finish Panel (1) - Remove - Rear End Trim Finish Panel Replacement

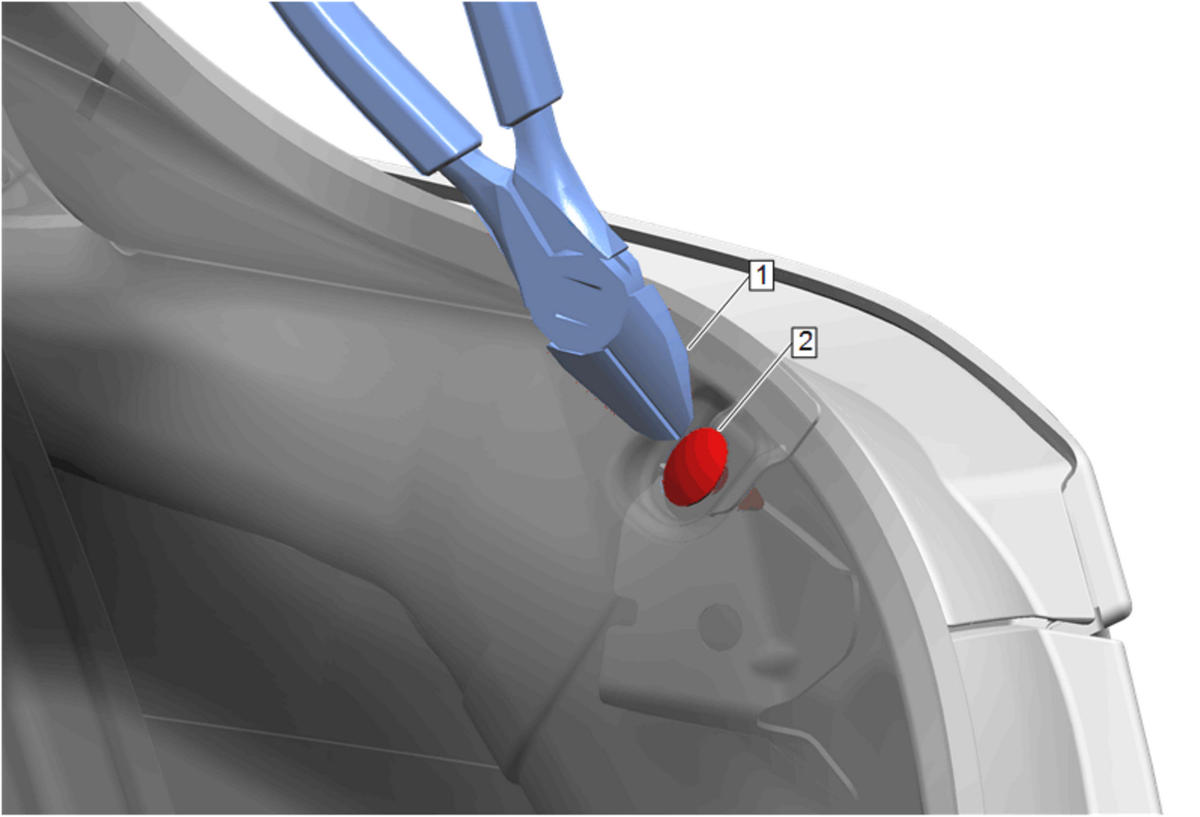

Cut off the head of the rear compartment side trim insulator retainers (2) with a diagonal cutter (1) prior to removing the rear compartment side trim.
- Remove and DISCARD the retainer. (2) [4x]
Rear Compartment Side Trim Insulator Retainer (1) - Remove [4x]
- Release the card reader and disconnect the electrical connectors.
- Rear Compartment Side Trim-Right Side (2) - Remove
