Front Side Door Armrest Switch Mount Plate Replacement - Passenger Side

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

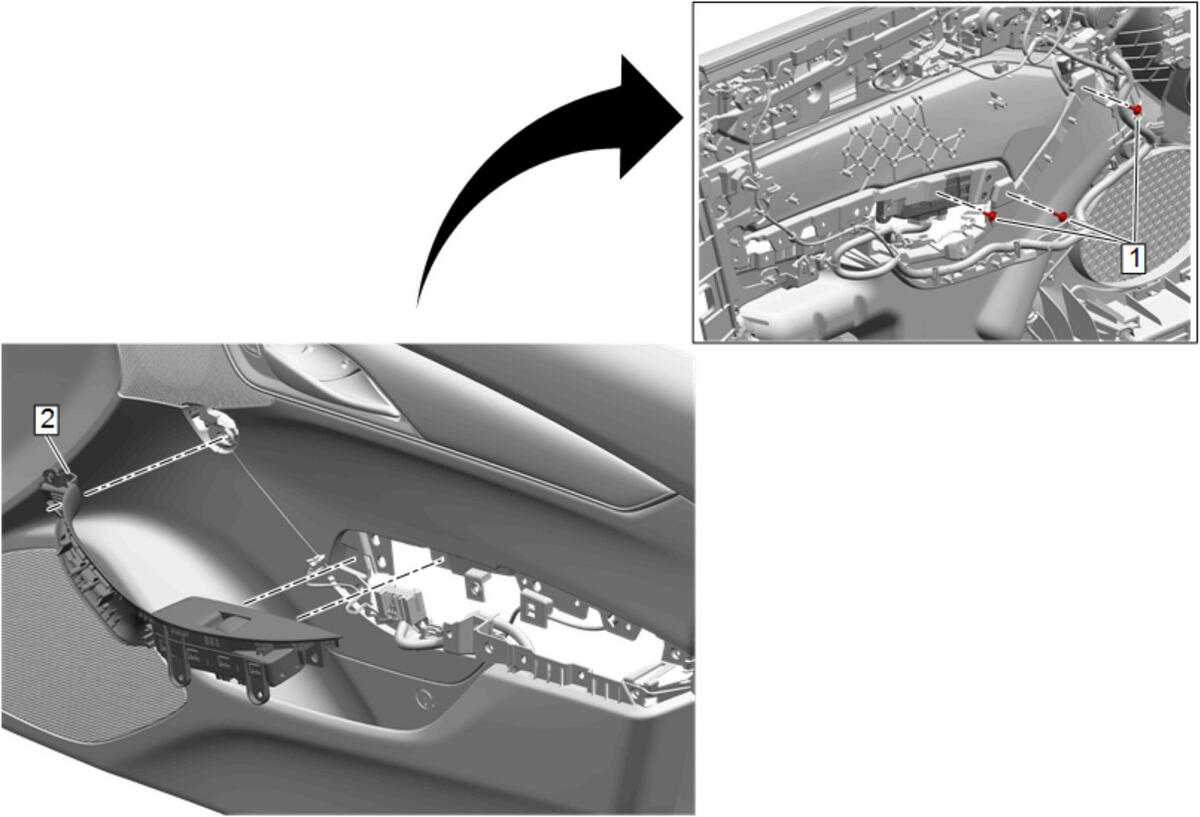

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Replacement - Passenger Side
1	Front Side Door Trim Bolt [3x] CAUTION: Refer to: Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Side Door Armrest Switch Mount Plate- Passenger Side Procedure Rotate the armrest switch mount plate up and rearward to unhook the front retaining feature. Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Front Side Door Armrest Replacement - Passenger Side

Front Side Door Trim Bolt [3x]

CAUTION:

Refer to: Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Side Door Armrest Switch Mount Plate- Passenger Side

Procedure

Rotate the armrest switch mount plate up and rearward to unhook the front retaining feature.
Disconnect the electrical connector.
Transfer components as necessary.
