Supercharger Air Inlet Pressure Sensor Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

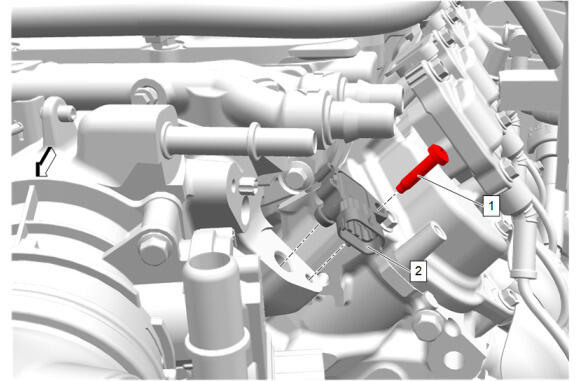

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Evaporative Emission Canister Purge Solenoid Valve Replacement
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Supercharger Air Inlet Pressure Sensor Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

Preliminary Procedure
Evaporative Emission Canister Purge Solenoid Valve Replacement

Manifold Absolute Pressure Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Supercharger Air Inlet Pressure Sensor

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
